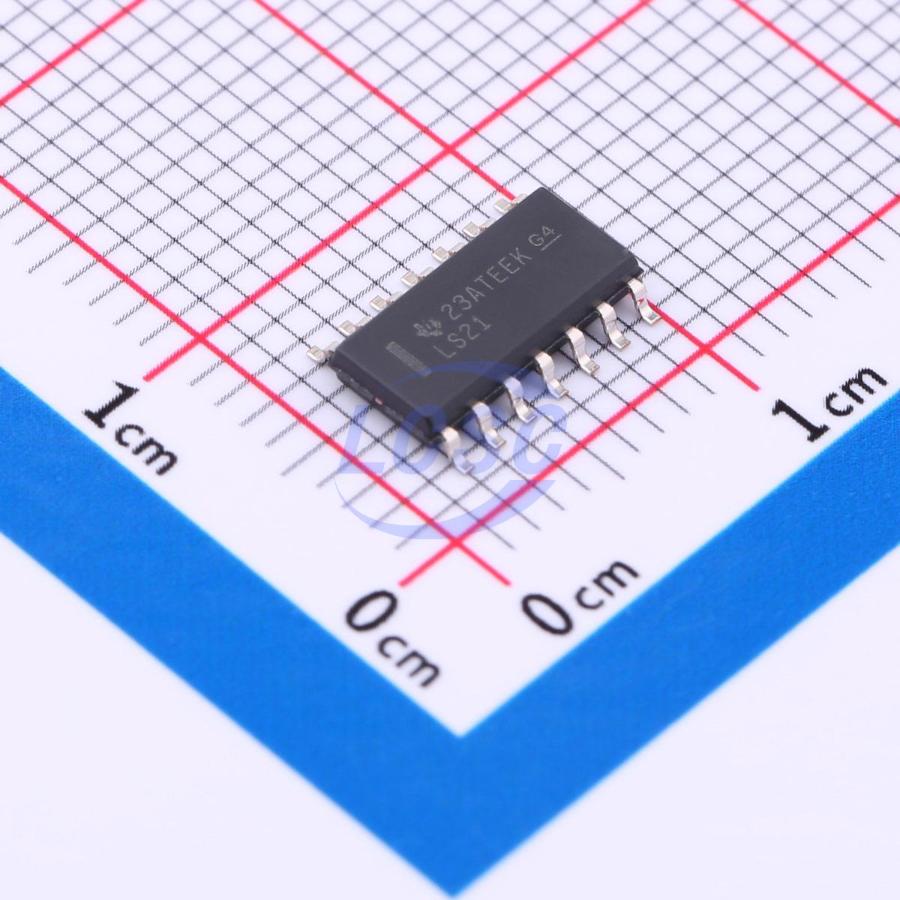

SN74LS21DR
4.75V~5.25V 20ns@5V,15pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
DUAL 4-INPUT POSITIVE-AND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74LS21DR
- Store part #
- C2863615
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,576 in stock
#C2863615
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.36 | ₹59.36 |
| 10+ | ₹50.23 | ₹502.30 |
| 30+ | ₹43.71 | ₹1,311.30 |
| 100+ | ₹38.49 | ₹3,849.00 |
| 500+ | ₹36.75 | ₹18,375.00 |
| 1,000+ | ₹35.67 | ₹35,670.00 |
1 × ₹59.36
₹59.36
excl. GST
₹70.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS21DR
₹59.36 for 1 + GST
Specifications
- Logic Family
- 74LS Series
- Operating Temperature
- 0℃~+70℃
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 2.7V~3.4V
- Voltage - Supply
- 4.75V~5.25V
- Number of Channels
- 2;4
- Current - Output High(IOH)
- 400uA
- Output Logic Level - Low
- 500mV
- Propagation Delay
- 20ns@5V,15pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
These devices contain two independent 4-input AND gates. The SN54LS21 is characterized for operation over the full temperature range of -55 ℃ to 125 ℃. The SN74LS21 is characterized for operation from 0 ℃ to 70 ℃.
Key features
- Multiple package options available: plastic small-outline, ceramic chip carrier, flat package, plastic DIP, ceramic DIP
- SN74LS21 operating temperature range: 0℃ to 70℃
- Maximum ratings: supply voltage VCC = 7V, input voltage = 7V, storage temperature range -65℃ to 150℃
- Typical parameter test conditions: VCC = 5V, TA = 25℃
- No more than 1 output shorted at a time; short-circuit duration must not exceed 1 second
- Available in different classifications compliant with lead and halogen environmental requirements
- Tape-and-reel and tube packaging options available; all dimensions are nominal, linear dimensions in millimeters
