TDSEMICDatasheet (PDF)

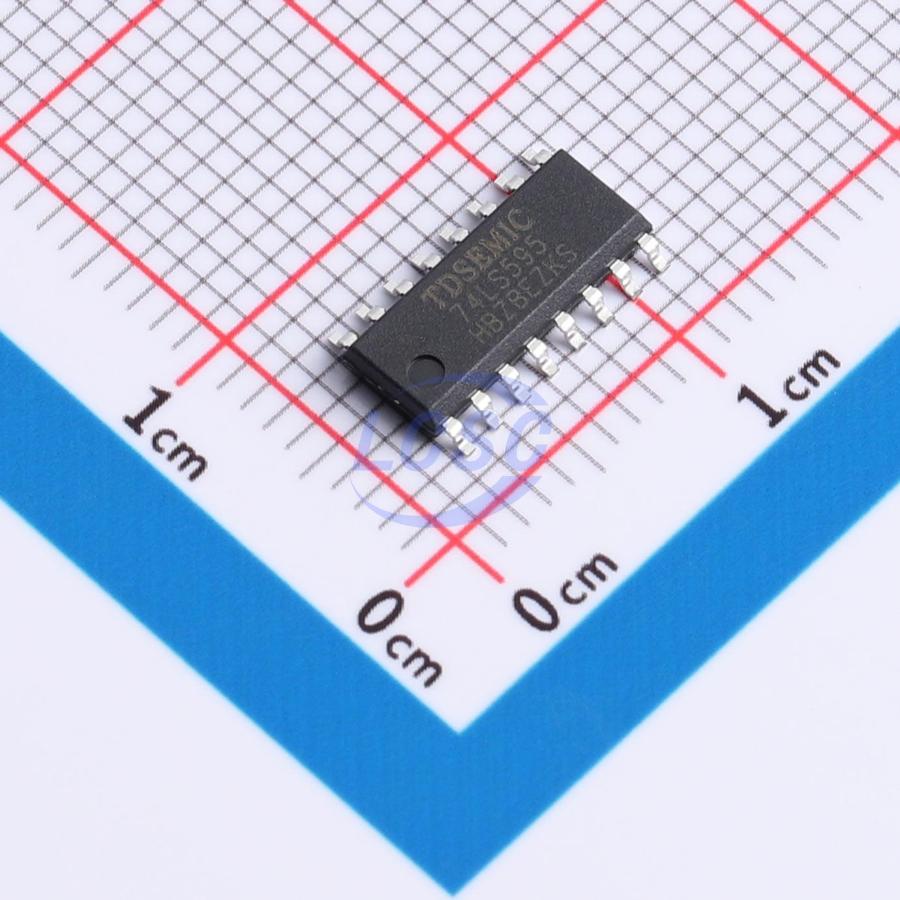

SN74LS595DR-TD
2V~6V 1 35mA 50ns@6V,50pF Serial-to-Parallel or Serial SOP-16 Shift Registers
SOP-16RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SN74LS595DR-TD
- Store part #
- C52437593
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,270 in stock
#C52437593
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.67 | ₹168.35 |
| 50+ | ₹26.55 | ₹1,327.50 |
| 150+ | ₹23.50 | ₹3,525.00 |
| 500+ | ₹19.69 | ₹9,845.00 |
| 2,500+ | ₹17.99 | ₹44,975.00 |
| 5,000+ | ₹16.97 | ₹84,850.00 |
5 × ₹33.67
₹168.35
excl. GST
₹198.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS595DR-TD
₹168.35 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 7.8mA
- Series
- 74LS
- Current - Output Low(IOL)
- 7.8mA
- Number of Elements
- 1
- Output Current
- 35mA
- Propagation Delay
- 50ns@6V,50pF
- Features
- Asynchronous clear function;Output enable
- Function
- Serial-to-Parallel or Serial
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.297 g
Overview
The 74LS595 contains an 8-bit shift register with asynchronous reset input and an 8-bit latch with outputs. On each low-to-high transition of the shift clock, serial data is shifted into the internal shift register. On the low-to-high transition of the latch clock, the latch captures the 8-bit data from the shift register. The shift register also provides a serial output.
Key features
- Operating voltage range: 2 ~ 6V
- High noise immunity
- Output compatible with CMOS and TTL
- Operating temperature range: -40 ~ +125℃
- Package options: DIP-16, SOP-16, and TSSOP-16
- Latch-up performance ≤ 250 mA
- ESD protection:
- HBM: Compliant with ANSI/ESDA/JEDEC JS-001 2023, exceeds 2000 V
- CDM: Compliant with ANSI/ESDA/JEDEC JS-002 2022, exceeds 2000 V
