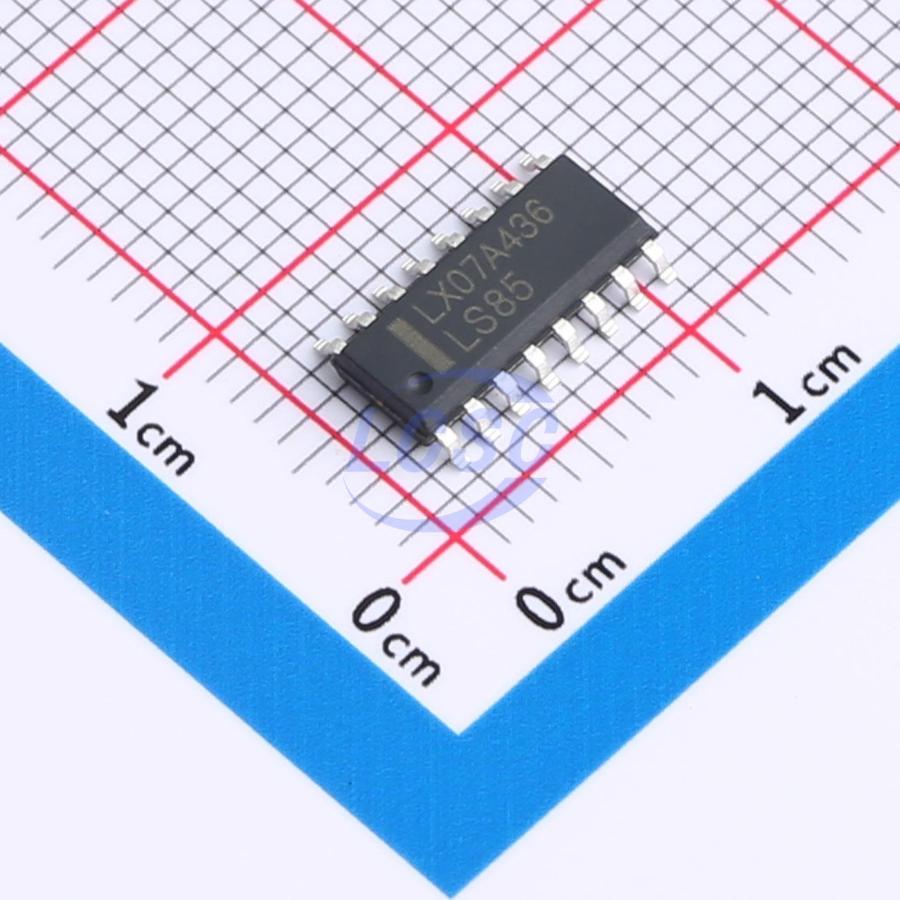

SN74LS85DR(LX)
Four channels SOP-16 Linear Comparators
4-bit Magnitude Comparator
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LS85DR(LX)
- Store part #
- C41413615
- Package / case
- SOP-16
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,170 in stock
#C41413615
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.19 | ₹195.95 |
| 50+ | ₹30.77 | ₹1,538.50 |
| 150+ | ₹27.16 | ₹4,074.00 |
| 500+ | ₹22.65 | ₹11,325.00 |
| 2,500+ | ₹18.77 | ₹46,925.00 |
| 5,000+ | ₹17.57 | ₹87,850.00 |
5 × ₹39.19
₹195.95
excl. GST
₹231.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS85DR(LX)
₹195.95 for 5 + GST
Specifications
- Quiescent Current
- 8uA
- Number of Channels
- Four channels
- Propagation Delay Time
- 23ns
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 2V~6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.276 g
Overview
The SN74LS85 is a 4-bit magnitude comparator that can be expanded to almost any length. They perform comparison of two 4-bit binary, BCD or other monotonic codes and present the three possible magnitude results at the outputs (QA>B, QA=B and QA<B). The 4-bit inputs are weighted (A0 to A3 and B0 to B3), where A3 and B3 are the most significant bits. For proper compare operation the expander inputs (IA>B, IA=B and IA<B) to the least significant position must be connected as follows: IA<B = IA>B = LOW and IA=B = HIGH. For words greater than 4-bits, units can be cascaded by connecting outputs QA>B, QA=B and QA<B to the corresponding inputs of the significant comparator. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- CMOS low power dissipation
- Specified from -40 °C to +125 °C
- Packaging information: DIP16/SOP16/TSSOP16
