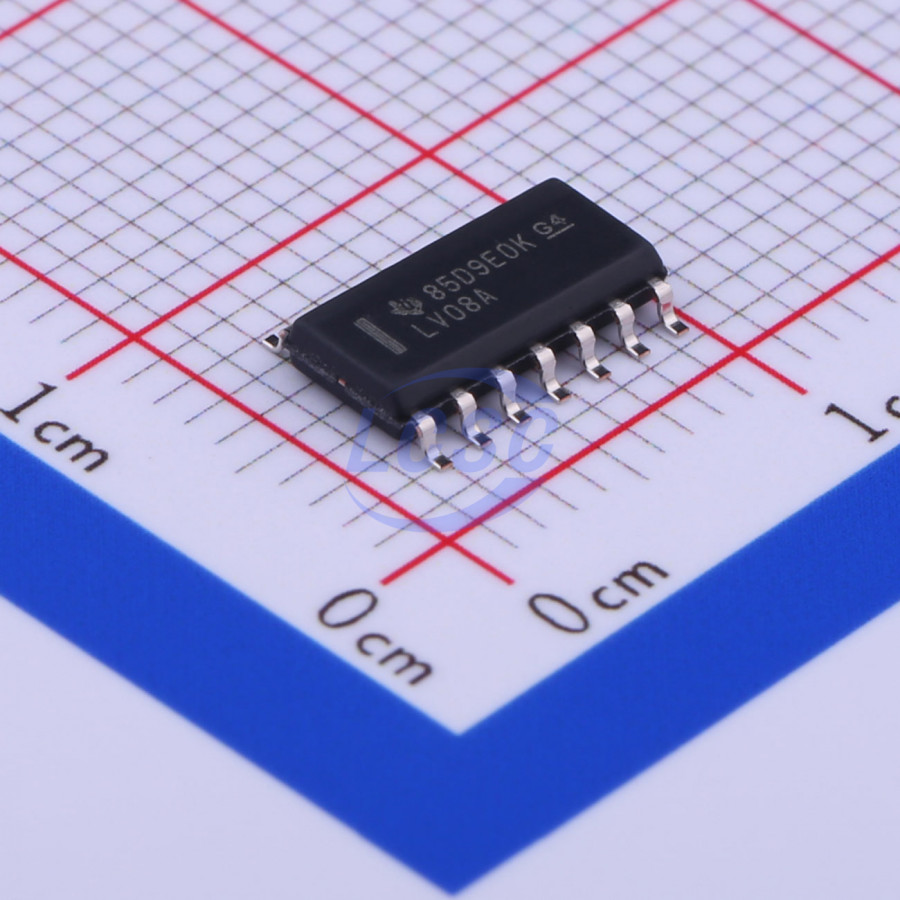

SN74LV08ADR
2V~5.5V 7.9ns@5V,50pF 20uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quadruple 2-Input Positive-AND Gates
- Manufacturer
- TI
- Manufacturer part #
- SN74LV08ADR
- Store part #
- C352967
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,170 in stock
#C352967
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.57 | ₹222.85 |
| 50+ | ₹35.52 | ₹1,776.00 |
| 150+ | ₹31.65 | ₹4,747.50 |
| 500+ | ₹25.60 | ₹12,800.00 |
| 2,500+ | ₹23.46 | ₹58,650.00 |
| 5,000+ | ₹22.16 | ₹1,10,800.00 |
5 × ₹44.57
₹222.85
excl. GST
₹262.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LV08ADR
₹222.85 for 5 + GST
Specifications
- Logic Family
- 74LV Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;400mV;440mV;550mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV
- Input Logic Level - High
- 1.5V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2V;2.48V;3.8V
- Quiescent Current(Iq)
- 20uA
- Current - Output High(IOH)
- 12mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 12mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.34 g
Overview
This quadruple 2-input positive-AND gate is designed for 2-V to 5.5-V VCC operation. The SN74LV08A device performs the Boolean function Y = A • B or Y = ¬(¬A + ¬B) in positive logic.
Applications
- Servers
- Telecom Infrastructure
- PCs and Notebooks
- TV Set-Top Boxes
Key features
- 2-V to 5.5-V VCC Operation
- Max tpd of 7 ns at 5 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
- Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C
- Support Mixed-Mode Voltage Operation on All Ports
- Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74VHC08MX#C6142onsemi · SOIC-14 | onsemi | SOIC-14 | 390 | ₹62.62 · 390 in stock | View |
 | SN74AHC08DR#C6937TI · SOIC-14 | TI | SOIC-14 | 1,805 | ₹33.04 · 1,805 in stock | View |
 | SN74AHC08QDRQ1#C2867774TI · SOIC-14 | TI | SOIC-14 | 840 | ₹41.25 · 840 in stock | View |
 | 74AHC08D-Q100J#C554207Nexperia · SOP-14 | Nexperia | SOP-14 | 65 | ₹40.17 · 65 in stock | View |
 | TC74VHC08F(EL,K,F)#C6880155TOSHIBA · SOP-14 | TOSHIBA | SOP-14 | 20 | ₹50.91 · 20 in stock | View |
