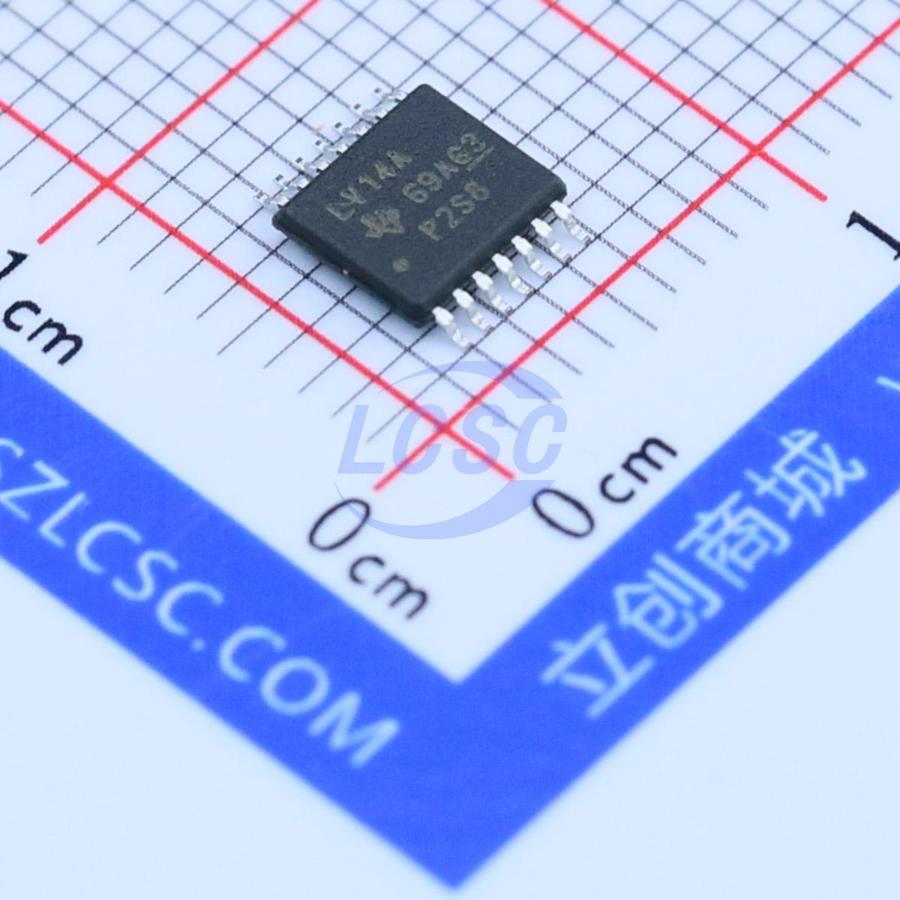

SN74LV14APWR

Schmitt trigger 2V~5.5V 10.6ns@5V,50pF 20uA 6 TSSOP-14 Gates and Inverters RoHS

TSSOP-14ROHS3 CompliantActive

HEXSCHMITT-TRIGGER INVERTERS

Manufacturer: TI
Manufacturer part #: SN74LV14APWR
Store part #: C7780
Package / case: TSSOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

36,540 in stock

#C7780

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.65	₹113.25
50+	₹17.58	₹879.00
150+	₹15.41	₹2,311.50
500+	₹12.70	₹6,350.00
2,000+	₹11.50	₹23,000.00
4,000+	₹10.77	₹43,080.00

Quantity (min 5, multiples of 5)

5 × ₹22.65

₹113.25

excl. GST

₹133.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74LV14APWR

₹113.25 for 5 + GST

Specifications

Logic Family: 74LV
Input Type: Schmitt trigger
Voltage - Supply: 2V~5.5V
Propagation Delay: 10.6ns@5V,50pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.75V~3.5V
Input Logic Level - Low: 750mV~1.5V
Quiescent Current(Iq): 20uA
Number of Channels: 6
Current - Output High(IOH): 12mA
Current - Output Low(IOL): 12mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.204 g

Overview

These hex Schmitt-trigger inverters are designed for 2-V to 5.5-V VCC operation. The 'LV14A devices contain six independent inverters. These devices perform the Boolean function Y = A(overline). These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.

Key features

2-V to 5.5-V VCC Operation
Max tpd of 10 ns at 5V
Typical VOHP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25℃
Typical VOHV (Output VOH Undershoot) >2.3V at VCC = 3.3V, TA = 25℃
Support Mixed-Mode Voltage Operation on All Ports
Ioff Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101)
