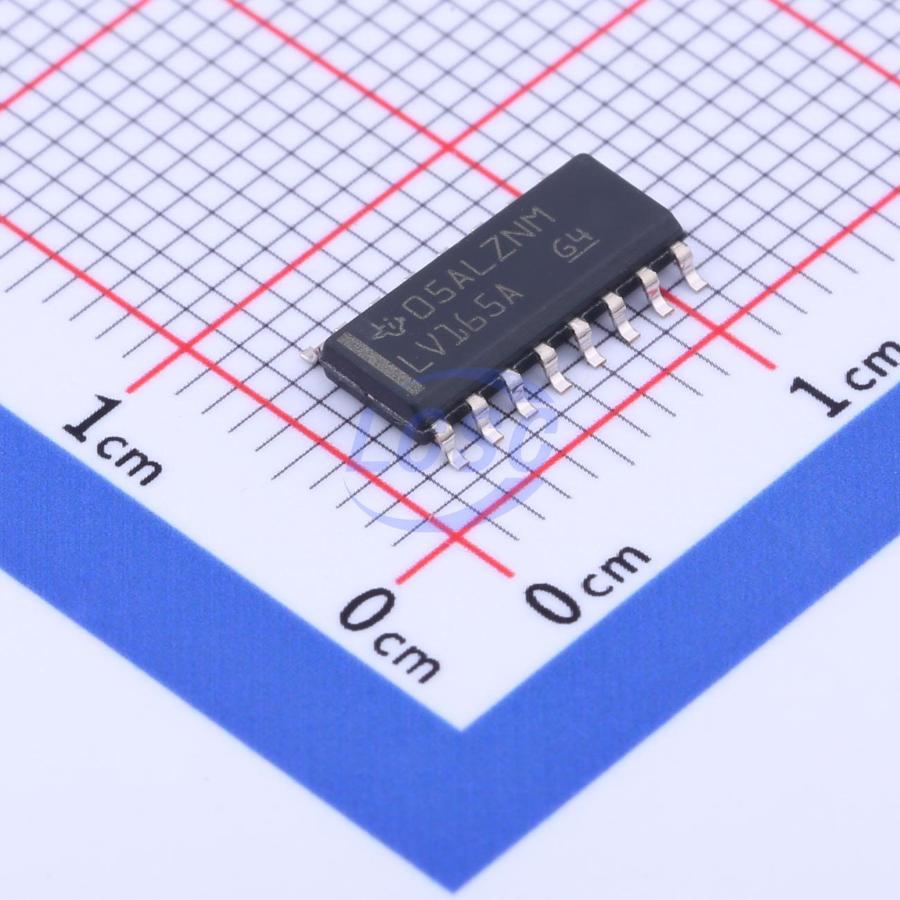

SN74LV165ADR
2V~5.5V 1 12mA 13.5ns@5V,50pF Parallel or Serial to Serial SOIC-16 Shift Registers RoHS
SOIC-16ROHS3 CompliantActive
8-Bit Parallel-Load Shift Register
- Manufacturer
- TI
- Manufacturer part #
- SN74LV165ADR
- Store part #
- C273656
- Package / case
- SOIC-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,450 in stock
#C273656
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.12 | ₹230.60 |
| 50+ | ₹35.85 | ₹1,792.50 |
| 150+ | ₹31.46 | ₹4,719.00 |
| 500+ | ₹25.97 | ₹12,985.00 |
| 2,500+ | ₹23.54 | ₹58,850.00 |
| 5,000+ | ₹22.07 | ₹1,10,350.00 |
5 × ₹46.12
₹230.60
excl. GST
₹272.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LV165ADR
₹230.60 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Voltage - Supply
- 2V~5.5V
- Output Type
- Push-Pull
- Current - Output High(IOH)
- 12mA
- Series
- 74LV
- Current - Output Low(IOL)
- 12mA
- Number of Elements
- 1
- Output Current
- 12mA
- Features
- Asynchronous parallel load function
- Propagation Delay
- 13.5ns@5V,50pF
- Function
- Parallel or Serial to Serial
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
The SN74LV165A is an 8-bit parallel-load shift register designed for 2V to 5.5V VCC operation. When clocked, data is transferred through the serial output QH. When the shift/load (SH/LD) input is low, eight individual direct data inputs are supported, enabling parallel input at each stage. The LV165A features clock inhibit functionality and a complementary serial output QH. This device is designed for partial power-down applications using Ioff. The Ioff circuit disables the outputs to prevent damaging reverse current flow when the device is powered down.
Applications
- Increase the number of inputs on the microcontroller
Key features
- 2 V to 5.5 V VCC operation
- tpd max 10.5 ns at 5 V
- Mixed-mode voltage operation on all ports
- Ioff supports partial power-down mode operation
- Latch-up performance exceeds 250 mA per JESD 17
