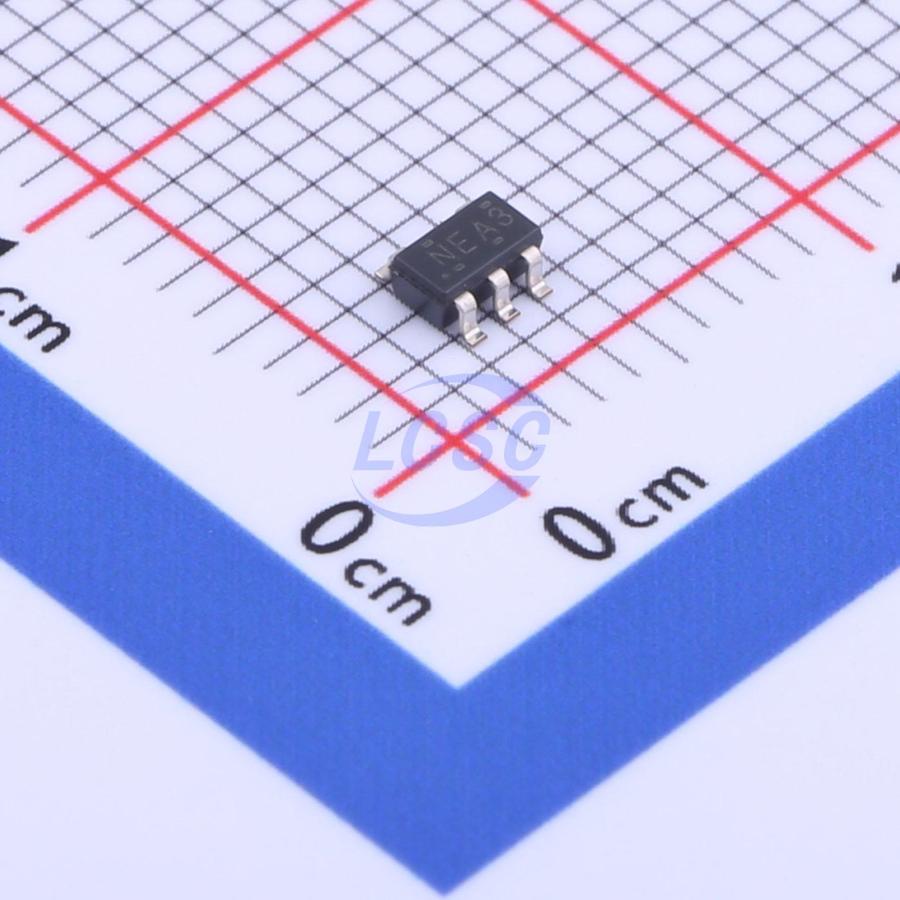

SN74LV1T00DBVR
NAND Gate IC 1 Channel SOT-23-5
SOT-23-5ROHS3 CompliantActive
Single-supply 2-input positive NAND gate CMOS logic level converter
- Manufacturer
- TI
- Manufacturer part #
- SN74LV1T00DBVR
- Store part #
- C2682142
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,445 in stock
#C2682142
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.09 | ₹115.45 |
| 50+ | ₹18.69 | ₹934.50 |
| 150+ | ₹16.55 | ₹2,482.50 |
| 500+ | ₹14.65 | ₹7,325.00 |
| 3,000+ | ₹14.12 | ₹42,360.00 |
| 6,000+ | ₹13.81 | ₹82,860.00 |
5 × ₹23.09
₹115.45
excl. GST
₹136.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LV1T00DBVR
₹115.45 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74LV Series
- Voltage - Supply
- 1.6V~5.5V
- Output Logic Level - Low
- 100mV;150mV~200mV;250mV~350mV
- Propagation Delay
- 7ns@5V,30pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 580mV~800mV
- Input Logic Level - High
- 940mV~2.1V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.21V~1.28V;1.45V~1.5V;1.93V~2V;2.15V~2.25V;2.49V~2.7V;2.8V~2.9V;3.95V~4.1V;4.5V~4.6V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Applications
- Industrial controllers
- Telecommunications
- Portable applications
- Servers, desktops, and laptops
- Automotive
