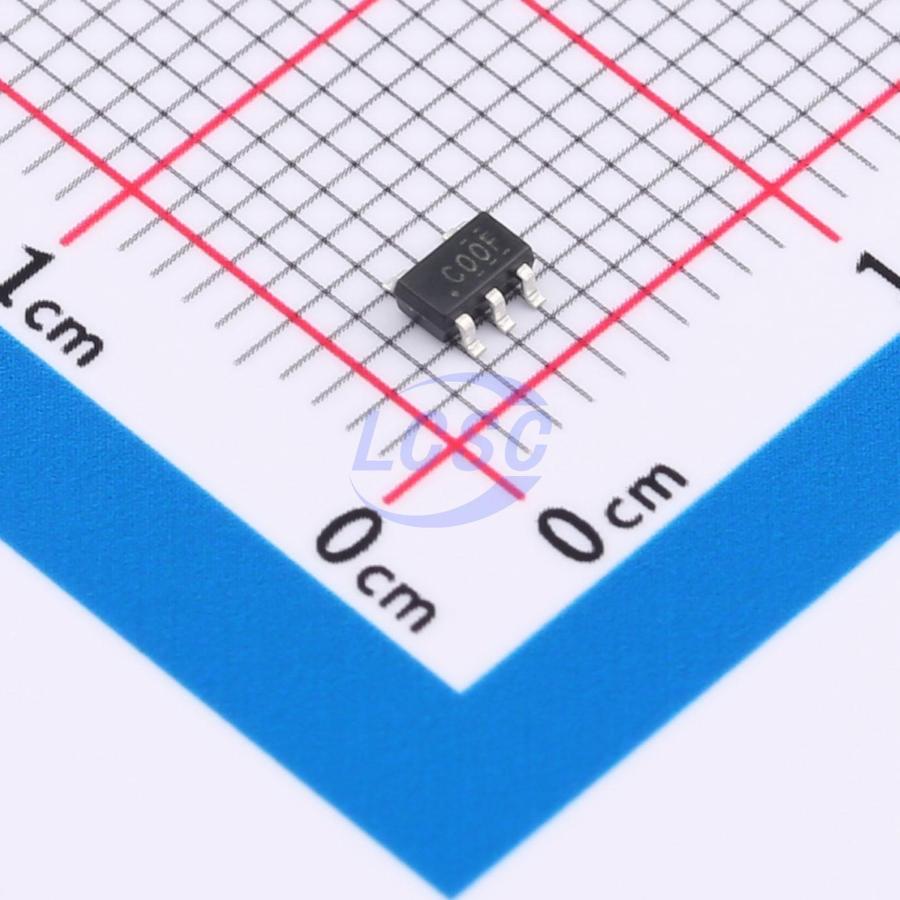

SN74LVC1G00DBVR
1.65V~5.5V 5.9ns@5V,15pF 10uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE 2-INPUT NAND GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G00DBVR
- Store part #
- C19829657
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,760 in stock
#C19829657
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.81 | ₹58.10 |
| 100+ | ₹4.63 | ₹463.00 |
| 300+ | ₹4.05 | ₹1,215.00 |
| 3,000+ | ₹3.60 | ₹10,800.00 |
| 6,000+ | ₹3.25 | ₹19,500.00 |
| 9,000+ | ₹3.07 | ₹27,630.00 |
10 × ₹5.81
₹58.10
excl. GST
₹68.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G00DBVR
₹58.10 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 5.9ns@5V,15pF
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 2;1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The SN74LVC1G00 is a 2-input NAND gate device which provides the Function Y = A•B(overline) or Y = A(overline) + B(overline) in positive logic. This device has power-down protective circuit preventing device from destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation/GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operate from 1.65V to 5.5V
- Inputs accept voltages to 5.5V
- High Noise Immunity
- Low power dissipation
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
- SOT553 Package Available
