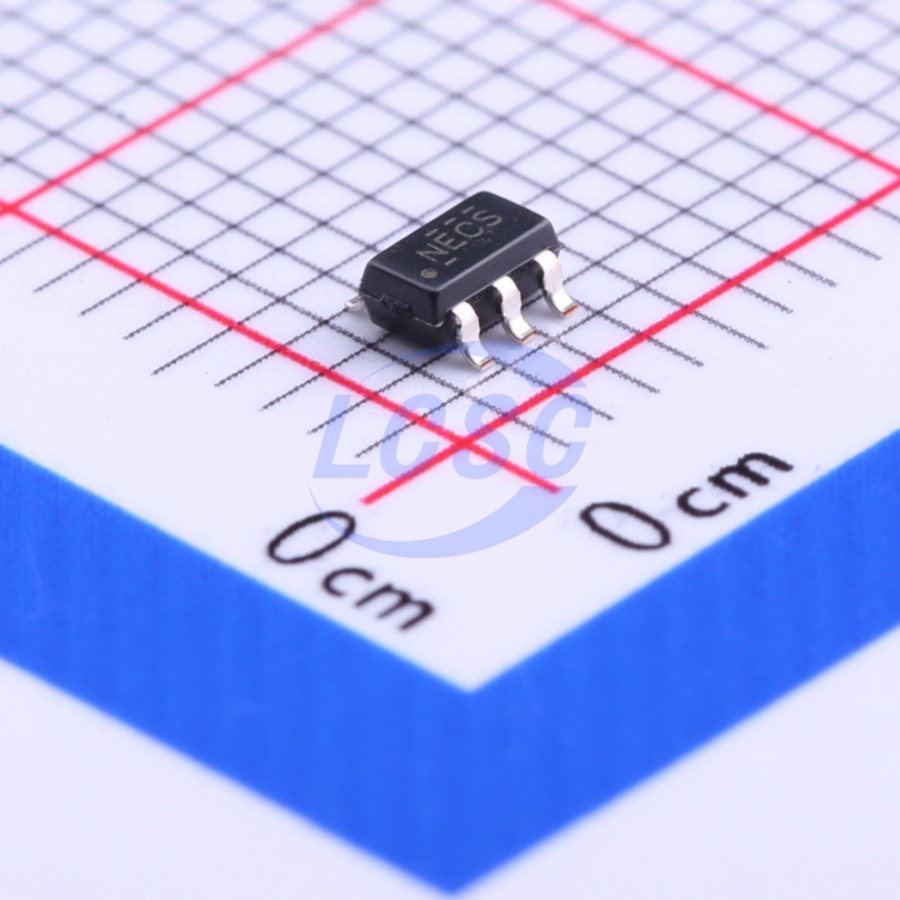

SN74LV1T04DBVR
1.6V~5.5V 7ns@5V,30pF 10uA 1 SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive
Single Power Supply Inverter Gate CMOS Logic Level Shifter
- Manufacturer
- TI
- Manufacturer part #
- SN74LV1T04DBVR
- Store part #
- C141355
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,945 in stock
#C141355
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.09 | ₹170.45 |
| 50+ | ₹27.00 | ₹1,350.00 |
| 150+ | ₹23.96 | ₹3,594.00 |
| 500+ | ₹20.16 | ₹10,080.00 |
| 3,000+ | ₹15.89 | ₹47,670.00 |
| 6,000+ | ₹14.88 | ₹89,280.00 |
5 × ₹34.09
₹170.45
excl. GST
₹201.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LV1T04DBVR
₹170.45 for 5 + GST
Specifications
- Logic Family
- 74LV
- Voltage - Supply
- 1.6V~5.5V
- Output Logic Level - Low
- 200mV
- Propagation Delay
- 7ns@5V,30pF
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 580mV~800mV
- Input Logic Level - High
- 940mV~2.1V
- Output Logic Level - High
- 2.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
SN74LV1T04 is a low voltage CMOS gate logic that operates at a wider voltage range for industrial, portable, telecom, and automotive applications. The output level is referenced to the supply voltage and is able to support 1.8V/2.5V/3.3V/5V CMOS levels. Supports Standard Logic Pinouts The input is designed with a lower threshold circuit to match 1.8V input logic at VCC = 3.3V and can be used in 1.8V to 3.3V level up translation. In addition, the 5V tolerant input pins enable down translation (e.g. 3.3V to 2.5V output at VCC = 2.5V). The wide VCC range of 1.8V to 5.5V allows generation of desired output levels to connect to controllers or processors. The SN74LV1T04 is designed with current-drive capability of 8 mA to reduce line reflections, overshoot, and undershoot caused by high-drive outputs.
Applications
- Industrial controllers
- Telecom Portable applications
- Servers
- PC and notebooks
- Automotive
Key features
- Single-Supply Voltage Translator at 5.0/3.3/2.5/1.8V VCC Operating Range of 1.8V to 5.5V
- Logic Output is Referenced to VCC
- 8mA Output Drive at 5V
- 7mA Output Drive at 3.3V
- 3mA Output Drive at 1.8V
- Characterized up to 50MHz at 3.3V VCC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74VHC1GT04DBVT1G#C891486onsemi · SC-74A-5 | onsemi | SC-74A-5 | 230 | ₹14.24 · 230 in stock | View |
