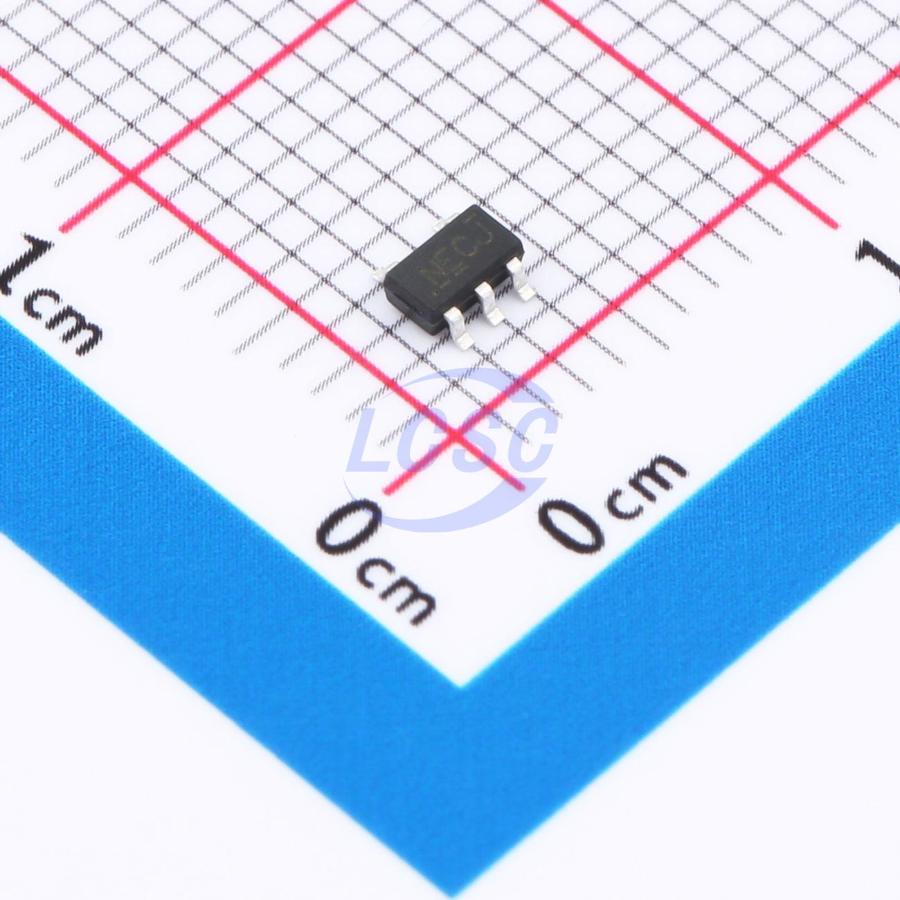

SN74LV1T04DBVR-TP

SOT-23-5 Translators, Level Shifters

SOT-23-5RoHSActive

SINGLE INVERTER GATE CMOS LOGIC LEVEL SHIFTER

Manufacturer: TECH PUBLIC
Manufacturer part #: SN74LV1T04DBVR-TP
Store part #: C47117561
Package / case: SOT-23-5
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,570 in stock

#C47117561

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.69	₹68.45
50+	₹10.84	₹542.00
150+	₹9.39	₹1,408.50
500+	₹8.32	₹4,160.00
3,000+	₹7.46	₹22,380.00
6,000+	₹7.03	₹42,180.00

Quantity (min 5, multiples of 5)

5 × ₹13.69

₹68.45

excl. GST

₹80.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LV1T04DBVR-TP

₹68.45 for 5 + GST

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

The is a single, level translating inverter gate. The low threshold inputs support 1.8V input logic at VCC = 3.3V and can be used in 1.8V to 3.3V level up translation. In addition, the 5V tolerant input pins enable level down translation (3.3V to 2.5V output at VCC = 2.5V). The output level is referenced to the supply Voltage and supports 1.8V, 2.5V, 3.3V and 5.0V CMOS levels.
