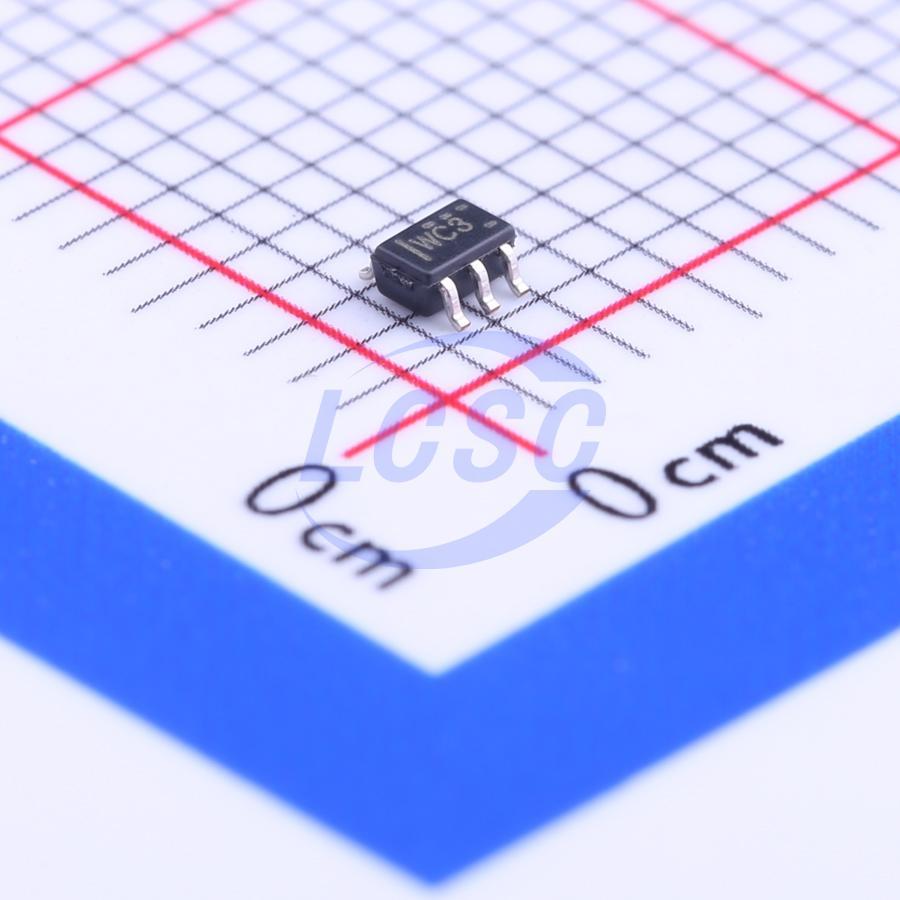

SN74LV1T04DCKR

1.6V~5.5V 7ns@5V,30pF 10uA 1 SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS3 CompliantActive

Single-supply inverter gate CMOS logic level converter

Manufacturer: TI
Manufacturer part #: SN74LV1T04DCKR
Store part #: C130022
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

18,270 in stock

#C130022

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹23.57	₹117.85
50+	₹18.62	₹931.00
150+	₹16.50	₹2,475.00
500+	₹12.60	₹6,300.00
3,000+	₹11.41	₹34,230.00
6,000+	₹10.70	₹64,200.00

Quantity (min 5, multiples of 5)

5 × ₹23.57

₹117.85

excl. GST

₹139.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LV1T04DCKR

₹117.85 for 5 + GST

Specifications

Logic Family: 74LV
Voltage - Supply: 1.6V~5.5V
Propagation Delay: 7ns@5V,30pF
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 580mV~800mV
Input Logic Level - High: 940mV~2.1V
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output High(IOH): 8mA
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

SN74LV1T04 is a low-voltage CMOS gate logic device with a wide voltage range, designed for industrial, portable, telecommunications, and automotive applications. Output levels are referenced to the supply voltage and support 1.8V/2.5V/3.3V/5V CMOS logic levels. The input is designed with a lower threshold circuit to match 1.8V input logic at V_CC = 3.3V, enabling level up-translation from 1.8V to 3.3V. Additionally, the 5V-tolerant input pin supports down-translation (e.g., 3.3V to 2.5V output conversion at V_CC = 2.5V). The wide V_CC range of 1.8V to 5.5V allows the desired output level to be generated for interfacing with controllers or processors. The SN74LV1T04 is designed with 8mA drive capability to reduce line reflections, overshoot, and undershoot caused by high-drive outputs. - Latch-up performance exceeds 250mA per JESD 17 - Standard logic pinout compatible - CMOS output compatible with AUP1G and LVC1G families

Applications

Industrial controllers
Telecom portable application servers
PCs and laptop computers/automotive

Key features

Single-supply voltage translator for 5.0/3.3/2.5/1.8V
VCC operating voltage range: 1.8V to 5.5V
Up-translation: 1.2V to 1.8V at 1.8V VCC; 1.5V to 2.5V at 2.5V VCC; 1.8V to 3.3V at 3.3V VCC; 3.3V to 5.0V at 5.0V VCC
Down-translation: 3.3V to 1.8V at 1.8V VCC; 3.3V to 2.5V at 2.5V VCC; 5.0V to 3.3V at 3.3V VCC
Logic output referenced to VCC
Output drive: 8mA at 5V; 7mA at 3.3V; 3mA at 1.8V
Frequency up to 50MHz at 3.3V VCC
5V-tolerant input pins
