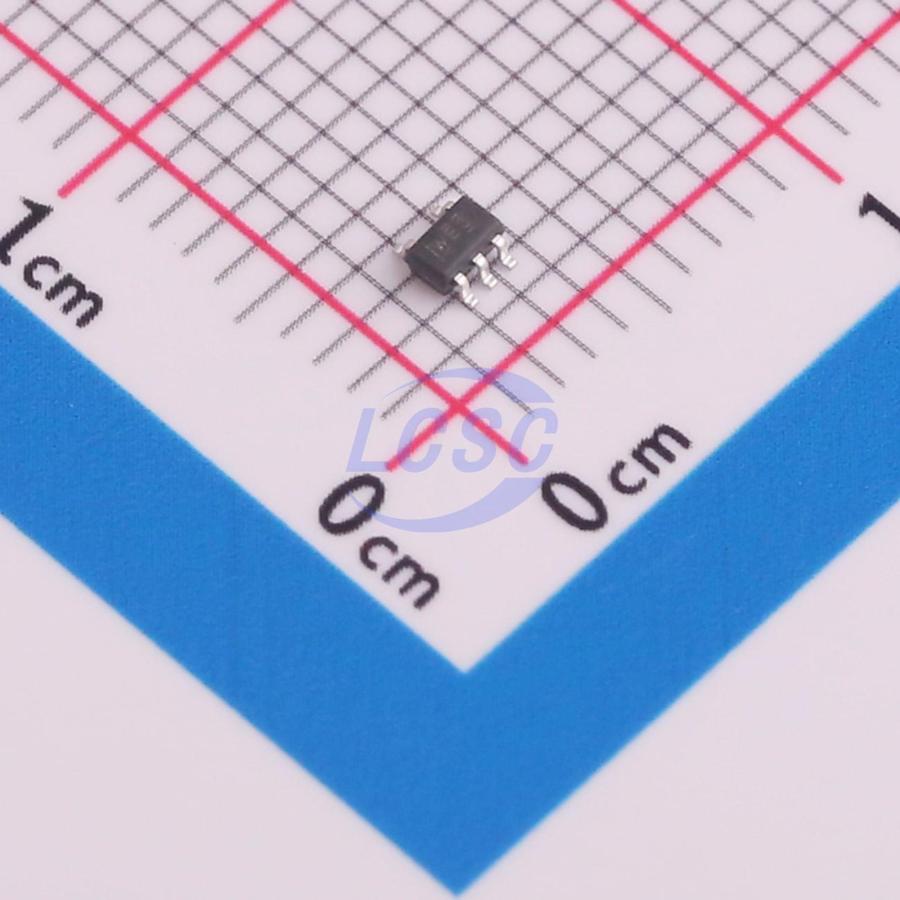

SN74LV1T08DCKR(UMW)
1uA 1.6V~5.5V SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
- Manufacturer
- UMW
- Manufacturer part #
- SN74LV1T08DCKR(UMW)
- Store part #
- C19100598
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,840 in stock
#C19100598
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.92 | ₹69.20 |
| 100+ | ₹5.44 | ₹544.00 |
| 300+ | ₹4.70 | ₹1,410.00 |
| 3,000+ | ₹4.14 | ₹12,420.00 |
| 6,000+ | ₹3.69 | ₹22,140.00 |
| 9,000+ | ₹3.47 | ₹31,230.00 |
10 × ₹6.92
₹69.20
excl. GST
₹81.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LV1T08DCKR(UMW)
₹69.20 for 10 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- 74LV
- Input Logic Level - Low
- 550mV~580mV;710mV~750mV;800mV
- Input Logic Level - High
- 940mV~1V;990mV~1.03V;1.135V~1.18V;1.21V~1.23V;1.35V~1.37V;1.47V~1.48V;2.02V~2.03V;2.1V~2.11V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.28V~1.5V;2V~2.25V;2.78V~2.9V;4.1V~4.6V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 1.6V~5.5V
- Number of Channels
- 2;1
- Output Logic Level - Low
- 100mV~350mV
- Propagation Delay
- 16.7ns@1.8V,15pF;18.4ns@1.8V,30pF;10.6ns@2.5V,15pF;11.6ns@2.5V,30pF;7.5ns@3.3V,15pF;8.9ns@3.3V,30pF;5.1ns@5V,15pF;5.4ns@5V,30pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G08DCKR(UMW)#C2983745UMW · SC-70-5 | UMW | SC-70-5 | 41,920 | ₹6.11 · 41,920 in stock | View |
