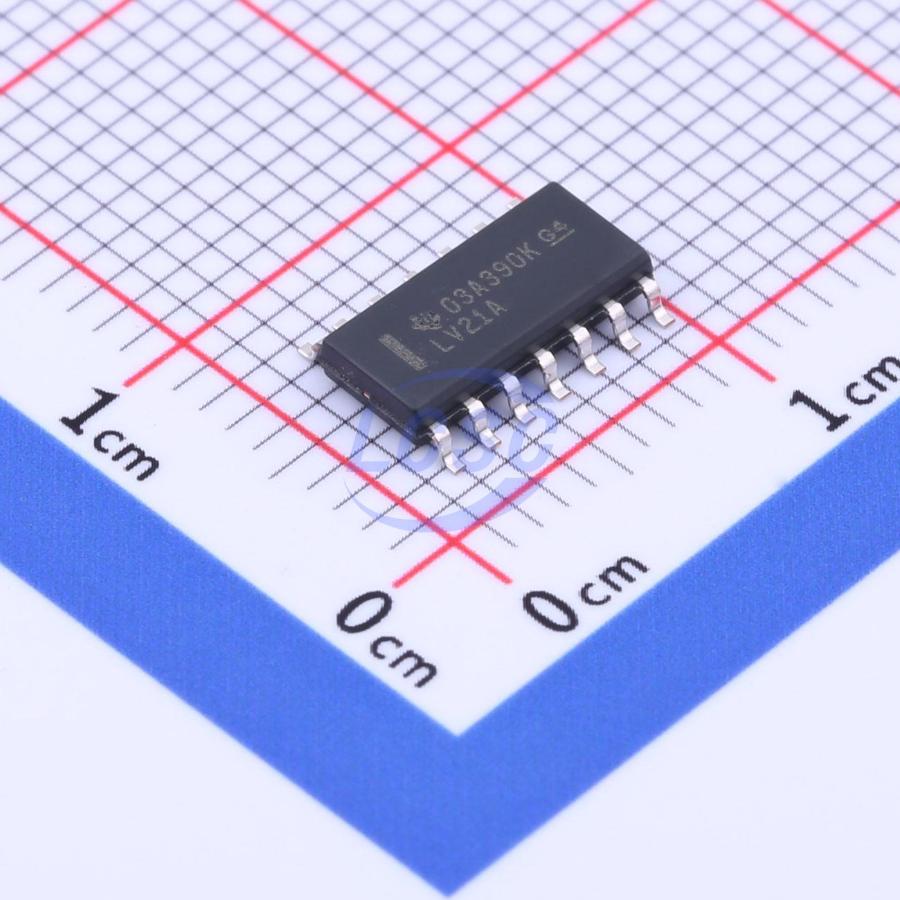

SN74LV21ADR
20uA 2V~5.5V 7ns@5V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
DUAL 4-INPUT POSITIVE-AND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74LV21ADR
- Store part #
- C2682160
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,339 in stock
#C2682160
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.46 | ₹57.46 |
| 10+ | ₹45.10 | ₹451.00 |
| 30+ | ₹39.03 | ₹1,170.90 |
| 100+ | ₹33.83 | ₹3,383.00 |
| 500+ | ₹32.31 | ₹16,155.00 |
| 1,000+ | ₹31.45 | ₹31,450.00 |
1 × ₹57.46
₹57.46
excl. GST
₹67.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LV21ADR
₹57.46 for 1 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 500mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V
- Logic Family
- 74LV Series
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 20uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 12mA
- Number of Channels
- 2;4
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 7ns@5V,50pF
- Current - Output Low(IOL)
- 12mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
These dual 4-input positive-AND gates are designed for 2-V to 5.5-VCC operation. The ’LV21A devices perform the Boolean function Y = A•B•C•D or Y = A(overline) + B(overline) + C(overline) + D(overline) in positive logic. These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
Key features
- 2-V to 5.5-V VCC Operation
- Max tpd of 6 ns at 5 V
- Typical vOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3V, TA = 25℃
- Typical vOHV (Output v0H Undershoot) > 2.3 V at VCC = 3.3V, TA = 25℃
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
