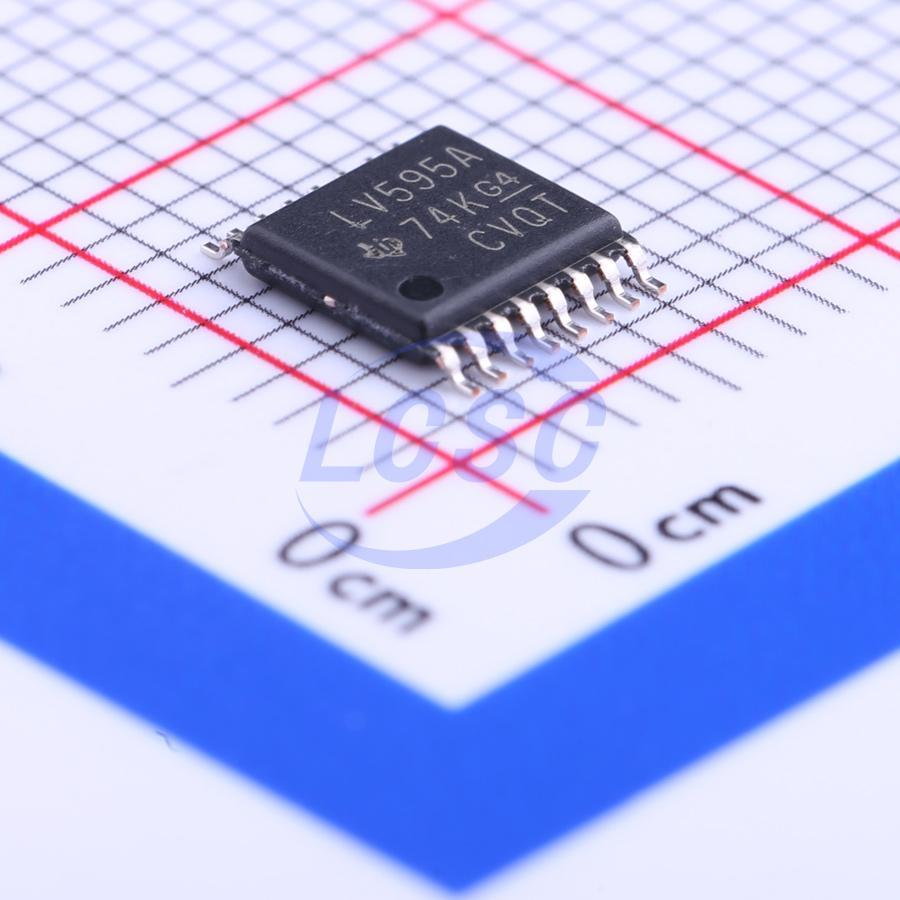

SN74LV595APWR
2V~5.5V 1 16mA 7.4ns@5V,50pF Serial-to-Serial or Parallel TSSOP-16 Shift Registers RoHS
TSSOP-16ROHS3 CompliantActive
8-Bit Shift Registers With 3-State Output Registers
- Manufacturer
- TI
- Manufacturer part #
- SN74LV595APWR
- Store part #
- C116847
- Package / case
- TSSOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,860 in stock
#C116847
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.74 | ₹243.70 |
| 50+ | ₹38.14 | ₹1,907.00 |
| 150+ | ₹33.60 | ₹5,040.00 |
| 500+ | ₹27.94 | ₹13,970.00 |
| 2,000+ | ₹25.41 | ₹50,820.00 |
| 4,000+ | ₹23.91 | ₹95,640.00 |
5 × ₹48.74
₹243.70
excl. GST
₹287.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV595APWR
₹243.70 for 5 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 16mA
- Series
- 74LV
- Current - Output Low(IOL)
- 16mA
- Number of Elements
- 1
- Output Current
- 16mA
- Features
- Asynchronous clear function;Output enable
- Propagation Delay
- 7.4ns@5V,50pF
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
The SN74LV595A device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Both the shift register clock (SRCLK) and storage register clock (RCLK) are positive-edge triggered.
Applications
- Network Switches
- Power Infrastructures
- PCs and Notebooks
- LED Displays
- Servers I/O Expanders
Key features
- 2-V to 5.5-V CC Operation
- Max tpd of 7.1 ns at 5 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25 ℃
- Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25 ℃
- Support Mixed-Mode Voltage Operation on All Ports
- 8-Bit Serial-In, Parallel-Out Shift Off
- Supports Live Insertion, Partial Power-Down Mode, and Back-Drive Protection
- Shift Register Has Direct Clear
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model
