TIDatasheet (PDF)

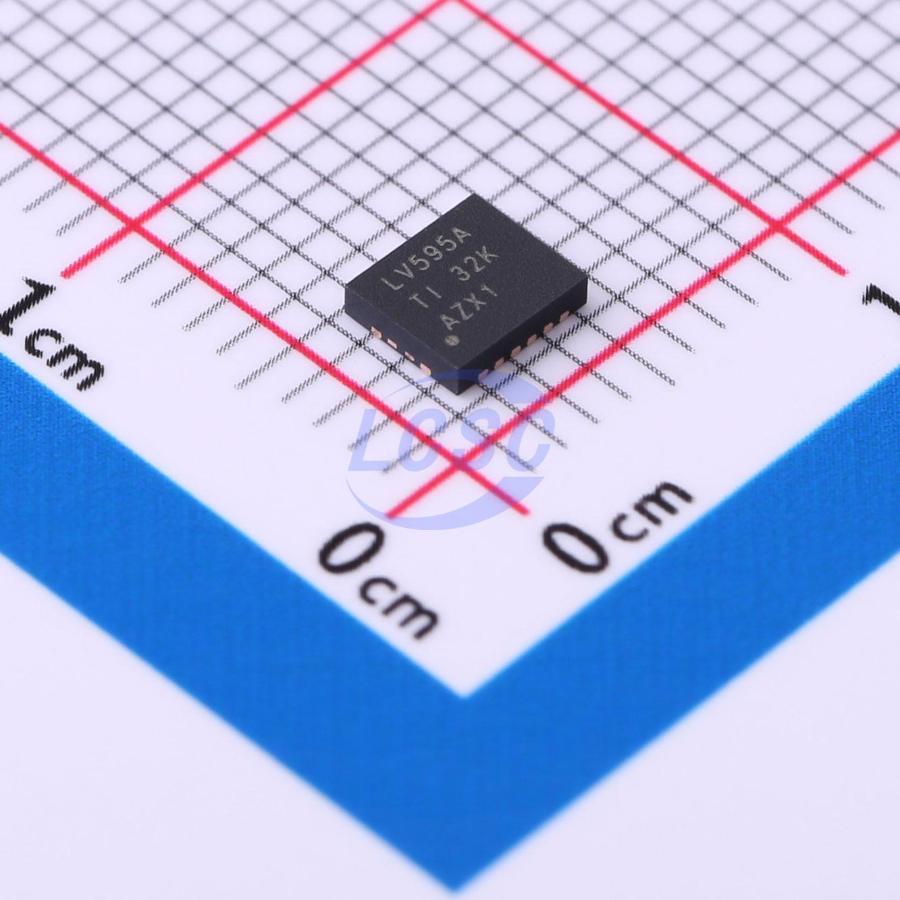

SN74LV595ARGYR
2V~5.5V 1 16mA 9.4ns@5V,50pF Serial-to-Parallel VQFN-16-EP(3.5x4) Shift Registers RoHS
VQFN-16-EP(3.5x4)ROHS3 CompliantActive
8-bit shift register with tri-state output register
- Manufacturer
- TI
- Manufacturer part #
- SN74LV595ARGYR
- Store part #
- C2871434
- Package / case
- VQFN-16-EP(3.5x4)
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,299 in stock
#C2871434
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.61 | ₹82.61 |
| 10+ | ₹69.81 | ₹698.10 |
| 30+ | ₹60.94 | ₹1,828.20 |
| 100+ | ₹53.56 | ₹5,356.00 |
| 500+ | ₹51.17 | ₹25,585.00 |
| 1,000+ | ₹49.65 | ₹49,650.00 |
1 × ₹82.61
₹82.61
excl. GST
₹97.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LV595ARGYR
₹82.61 for 1 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 16mA
- Series
- 74LV
- Current - Output Low(IOL)
- 16mA
- Number of Elements
- 1
- Output Current
- 16mA
- Features
- Asynchronous clear function;Output enable
- Propagation Delay
- 9.4ns@5V,50pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.51 g
Overview
The SN74LV595A device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Both the shift register clock (SRCLK) and the storage register clock (RCLK) are positive-edge triggered.
Applications
- Output expansion
- LED matrix control
- 7-segment display control
Key features
- 2V to 5.5V VCC operation
- tpd maximum 7.1ns at 5V
- VOLP (output ground bounce) typical less than 0.8V (VCC = 3.3V, TA = 25℃)
- VOHV (output VOH undershoot) typical greater than 2.3V (VCC = 3.3V, TA = 25℃)
- Mixed-mode voltage operation supported on all ports
- 8-bit serial-in/parallel-out shift register
- Ioff supports hot insertion, partial power-down mode, and back-drive protection
- Direct clear function on shift register
- Latch-up performance exceeds 250mA per JESD 17
