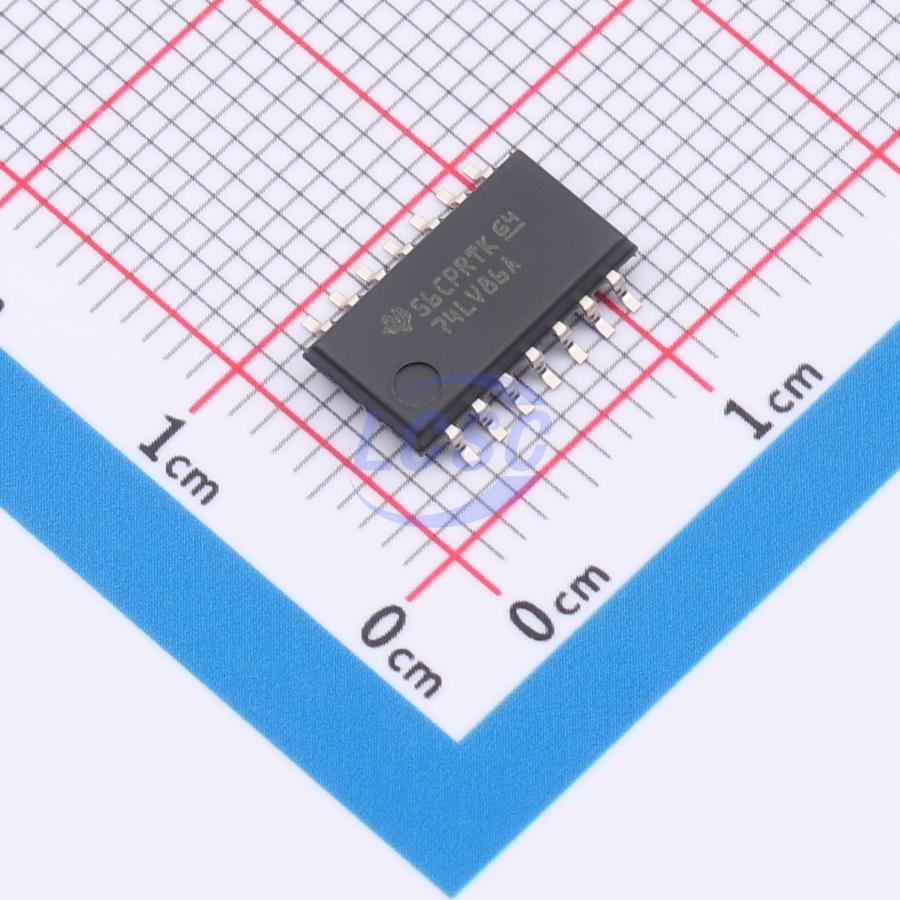

Quadruple 2-Input Exclusive-OR Gates
- Manufacturer
- TI
- Manufacturer part #
- SN74LV86ANSR
- Store part #
- C2878824
- Package / case
- SO-14-208mil
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,990 in stock
#C2878824
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.17 | ₹87.17 |
| 10+ | ₹73.72 | ₹737.20 |
| 30+ | ₹64.18 | ₹1,925.40 |
| 100+ | ₹56.37 | ₹5,637.00 |
| 500+ | ₹53.99 | ₹26,995.00 |
| 1,000+ | ₹52.47 | ₹52,470.00 |
1 × ₹87.17
₹87.17
excl. GST
₹102.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV86ANSR
₹87.17 for 1 + GST
Specifications
- Logic Family
- 74LV
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;400mV;440mV;550mV
- Propagation Delay
- 10ns@5V,50pF
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2V;2.48V;3.8V
- Quiescent Current(Iq)
- 20uA
- Current - Output High(IOH)
- 12mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 12mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.351 g
Overview
The ’LV86A devices are quadruple 2-input exclusiveOR gates designed for 2-V to 5.5-VCC operation. These devices contain four independent 2-input exclusive-OR gates. They perform the Boolean function Y = A⊕B or Y = A(overline)B + A B(overline) in positive logic. A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.
Applications
- EPOS
- Programmable Logic Controller (PLC)
- DCS and PAC: Analog Input Module
- Medical Meters: Portable
- Server Motherboard Printer
Key features
- 2-V to 5.5-VCC Operation
- Max tpd of 8 ns at 5 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25 ℃
- Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25 ℃
- Support Mixed-Mode Voltage Operation on All Ports
- Latch-Up Performance Exceeds 250 mA per JESD 17
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
