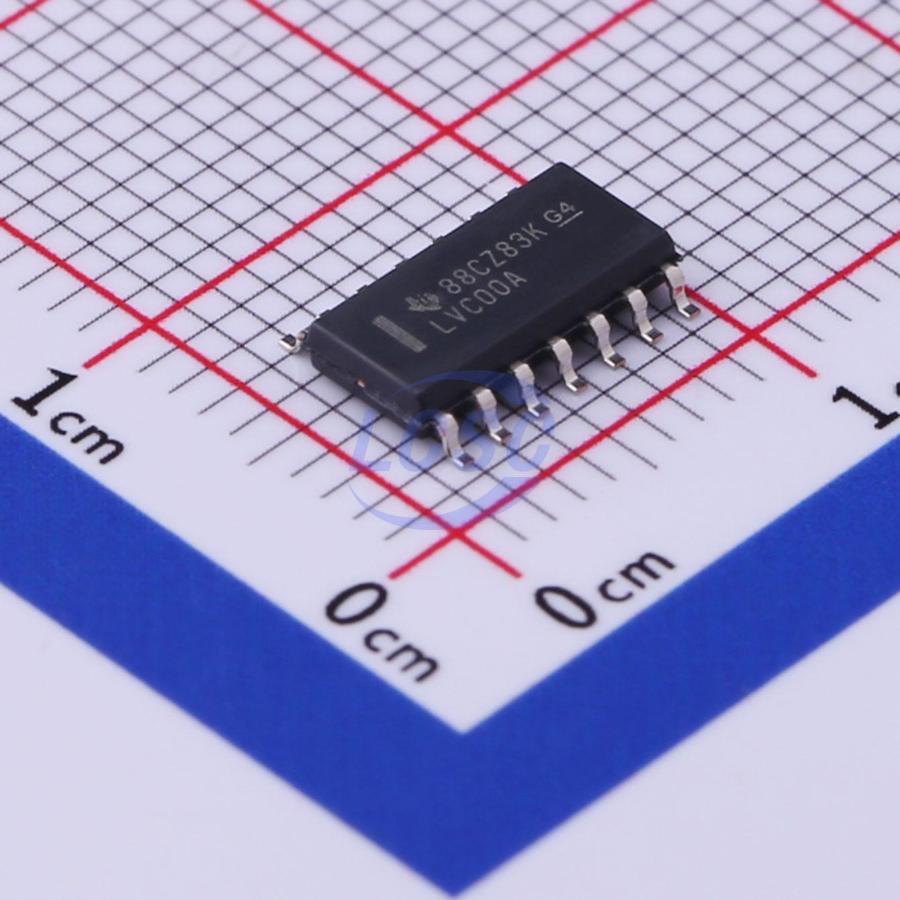

SN74LVC00ADR
1.65V~3.6V 4.1ns@3.3V,50pF 1uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quadruple 2-Input Positive-NAND Gates
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC00ADR
- Store part #
- C485072
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,935 in stock
#C485072
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.85 | ₹199.25 |
| 50+ | ₹31.29 | ₹1,564.50 |
| 150+ | ₹27.11 | ₹4,066.50 |
| 500+ | ₹23.38 | ₹11,690.00 |
| 2,500+ | ₹22.35 | ₹55,875.00 |
| 5,000+ | ₹21.74 | ₹1,08,700.00 |
5 × ₹39.85
₹199.25
excl. GST
₹235.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LVC00ADR
₹199.25 for 5 + GST
Specifications
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.65V~3.6V
- Output Logic Level - Low
- 800mV
- Propagation Delay
- 4.1ns@3.3V,50pF
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V~2V
- Output Logic Level - High
- 2V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.34 g
Overview
The SN54LVC00A quadruple 2-input positive-NAND gate is designed for 2.7 V to 3.6 V VCC operation, and the SN74LVC00A quadruple 2-input positive-NAND gate is designed for 1.65 V to 3.6 V VCC operation. The SNx4LVC00A devices perform the Boolean function Y = (A x B)(overline) or Y = A(overline) + B(overline) in positive logic. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in a mixed 3.3 V/5 V system environment.
Applications
- AV Receivers
- Audio Docks
- Portable Blu-ray Players
- Home Theater
- MP3 Players or Recorders
- Personal Digital Assistants (PDAs)
- Power: Telecom/Server AC/DC Supply
- Single Controller
- Analog and Digital Solid State Drives (SSDs)
- Client and Enterprise TVs: LCD, Digital, and High-Definition (HDTV)
- Tablets: Enterprise
- Video Analytics: Server
- Wireless Headsets, Keyboards, and Mice
Key features
- Operate From 1.65 V to 3.6 V
- Specified From -40 ℃ to 85 ℃, -40 ℃ to 125 ℃, and -55 ℃ to 125 ℃
- Inputs Accept Voltages to 5.5 V
- Max tₚd of 4.3 ns at 3.3 V
- Typical Vₒₗₚ (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, Tₐ = 25 ℃
- Typical Vₒₕᵥ (Output Vₒₕ Undershoot) > 2 V at VCC = 3.3 V, Tₐ = 25 ℃
- Latch-Up Performance Exceeds 250 mA
- ESD Protection Exceeds JESD 22: 2000 V Human-Body Model, 200 V Machine Model, 1000 V Charged-Device Model
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74ALVC00DR#C2878719TI · SOIC-14 | TI | SOIC-14 | 5 | ₹29.11 · 5 in stock | View |
| SN74LVC00ADT#C2878659TI · SOIC-14 | TI | SOIC-14 | On request | ₹153.97 · 0 in stock | View | |
| SN74ALVC00IDREP#C2872620TI · SOIC-14 | TI | SOIC-14 | On request | ₹361.42 · 0 in stock | View | |
| 74LVC00AD/S505118#C4469525Nexperia · SO-14 | Nexperia | SO-14 | On request | ₹12.91 · 0 in stock | View | |
| 74LVC132AD-Q100118#C4470635Nexperia · SOP-14 | Nexperia | SOP-14 | On request | ₹27.27 · 0 in stock | View | |
