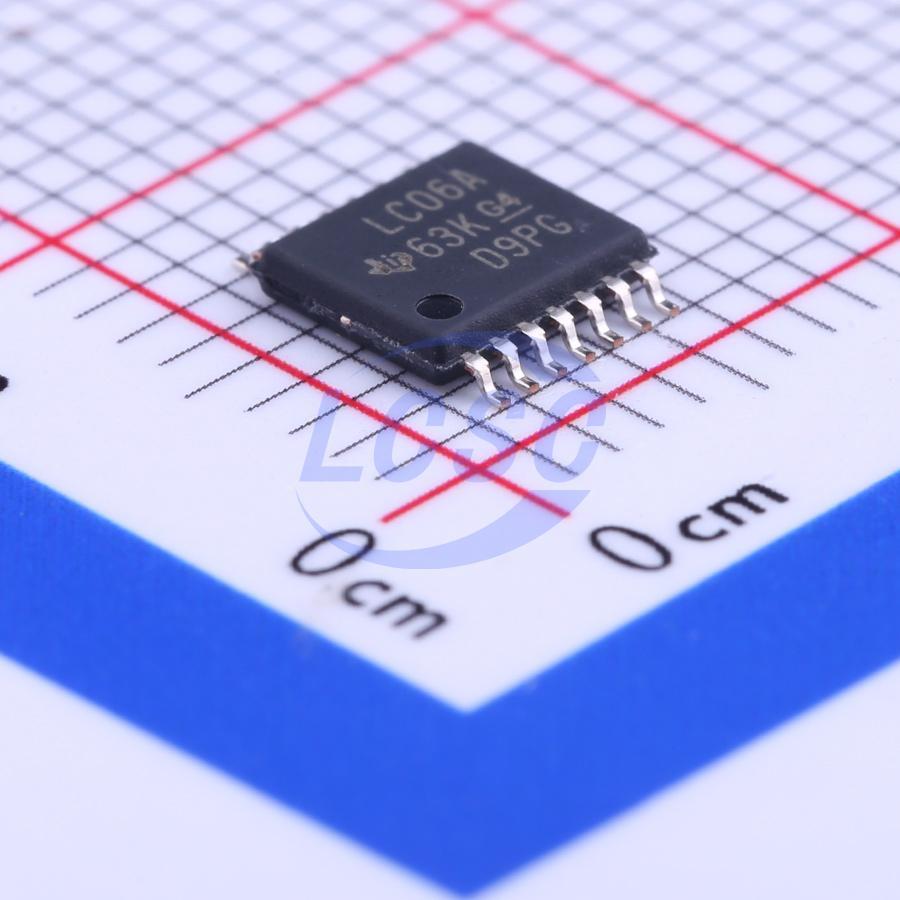

SN74LVC06APWR

These hex inverter buffers/drivers are designed for 1.65- V to 3.6 - 7VCC operation. The outputs of the Lvc06A devices are open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 24 mA Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translatior in a mixed 3.3-V/5-V system environment. These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• Level translator for mixed 3.3V/5V system environments
• Multiple open-drain outputs connectable for active-low wired-OR function
• Multiple open-drain outputs connectable for active-high wired-AND function

Key features

• Operate From 1.65 V to 3.6 V
• Specified From -40℃ to 85℃, -40℃ to 125℃, and -55℃ to 125℃
• Inputs and Open-Drain Outputs Accept Voltages up to 5.5 V
• Max tpd of 3.7 ns at 3.3V
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 250 mA Per JESD 17
