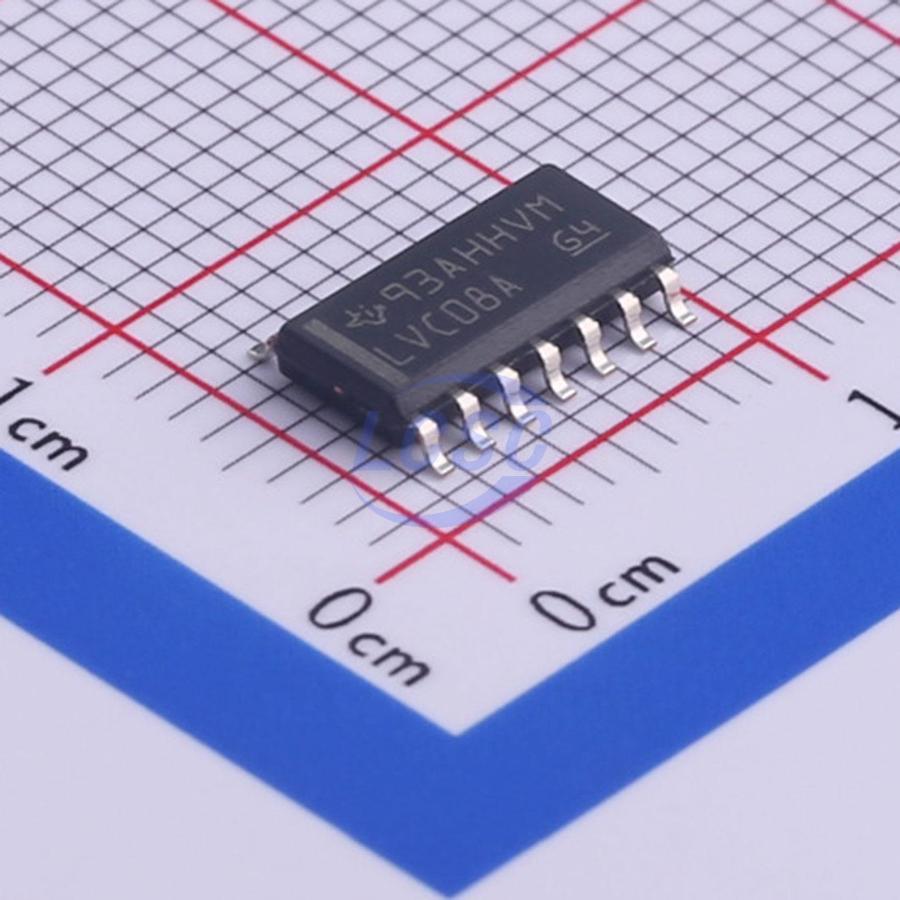

SN74LVC08ADR
StandardCMOS 1.65V~3.6V 3.9ns@3.3V,50pF 1uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quadruple 2-Input Positive-AND Gates
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC08ADR
- Store part #
- C468253
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
43,985 in stock
#C468253
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.04 | ₹110.20 |
| 50+ | ₹16.91 | ₹845.50 |
| 150+ | ₹14.71 | ₹2,206.50 |
| 500+ | ₹11.96 | ₹5,980.00 |
| 2,500+ | ₹10.74 | ₹26,850.00 |
| 5,000+ | ₹10.00 | ₹50,000.00 |
5 × ₹22.04
₹110.20
excl. GST
₹130.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LVC08ADR
₹110.20 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- output type
- Push-pull
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.65V~3.6V
- Output Logic Level - Low
- 800mV
- Propagation Delay
- 3.9ns@3.3V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 700mV~800mV
- Input Logic Level - High
- 1.7V~2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.25V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.34 g
Overview
The SN54LVC08A quadruple 2-input positive-AND gate is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC08A quadruple 2-input positive-AND gate is designed for 1.65-V to 3.6-V VCC operation. The SNx4LVC08A devices perform the Boolean function Y = A•B or Y = (A(overline) + B(overline))(overline) in positive logic. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.
Applications
- Servers
- LED Displays
- Network Switches
- I/O Expanders
- Base Station Processor Board
Key features
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
- SN74LVC04A Operates From 1.65 V to 3.6 V
- SN54LVC04A Operates From 2.0 V to 3.6 V
- SNx4LVC08A Specified From -40℃ to +85℃ and -40℃ to +125℃
- SN54LVC08A Specified From -55℃ to +125℃
- Inputs Accept Voltages to 5.5 V
- Max tpd of 4.1 ns at 3.3 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃
