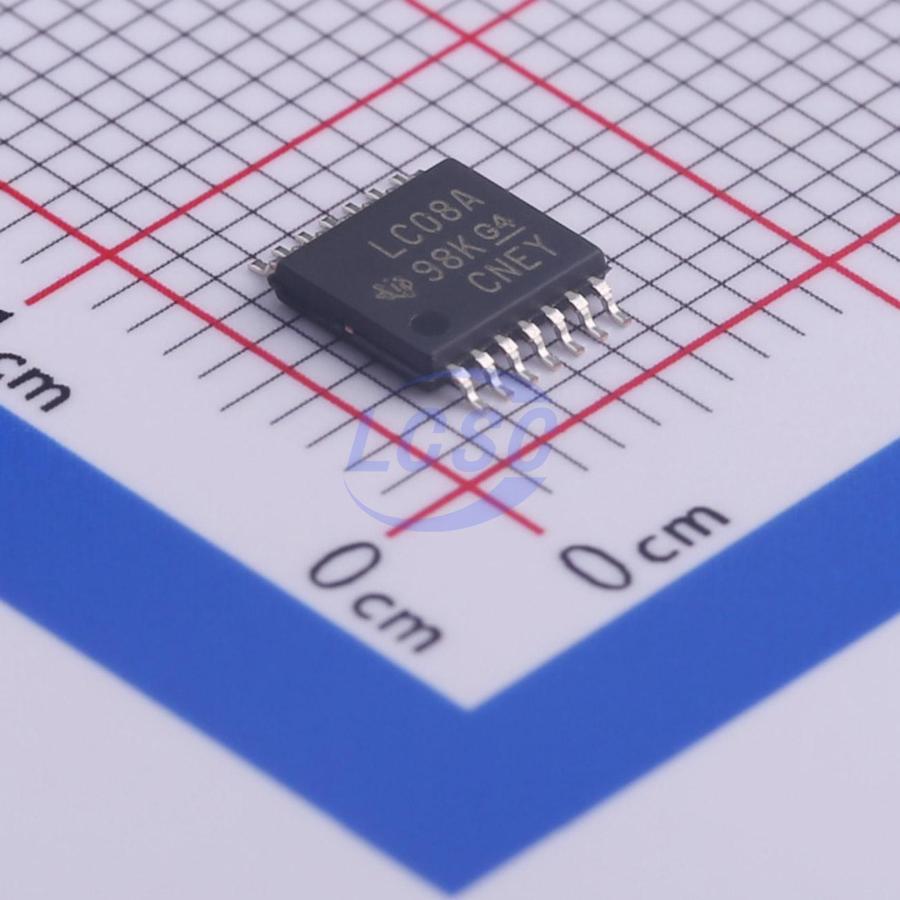

SN74LVC08APWR
StandardCMOS 1.65V~3.6V 3.9ns@3.3V,50pF 1uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Quadruple 2-Input Positive-AND Gates
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC08APWR
- Store part #
- C465737
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,180 in stock
#C465737
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.97 | ₹249.85 |
| 50+ | ₹40.43 | ₹2,021.50 |
| 150+ | ₹36.34 | ₹5,451.00 |
| 500+ | ₹31.24 | ₹15,620.00 |
| 2,000+ | ₹26.35 | ₹52,700.00 |
| 4,000+ | ₹24.99 | ₹99,960.00 |
5 × ₹49.97
₹249.85
excl. GST
₹294.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LVC08APWR
₹249.85 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- output type
- Push-pull
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.65V~3.6V
- Output Logic Level - Low
- 200mV;240mV;300mV;400mV;550mV;600mV;750mV;800mV
- Propagation Delay
- 3.9ns@3.3V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 700mV~800mV
- Input Logic Level - High
- 1.7V~2V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.09 g
Overview
The SN54LVC08A quadruple 2-input positive-AND gate is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC08A quadruple 2-input positive-AND gate is designed for 1.65-V to 3.6-V VCC operation. The SNx4LVC08A devices perform the Boolean function Y = A•B or Y = (A(overline) + B(overline))(overline) in positive logic. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.
Applications
- Servers
- LED Displays
- Network Switches
- I/O Expanders
- Base Station Processor Board
Key features
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
- SN74LVC04A Operates From 1.65 V to 3.6 V
- SN54LVC04A Operates From 2.0 V to 3.6 V
- SNx4LVC08A Specified From -40℃ to +85℃ and -40℃ to +125℃
- SN54LVC08A Specified From -55℃ to +125℃
- Inputs Accept Voltages to 5.5 V
- Max tpd of 4.1 ns at 3.3 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃
