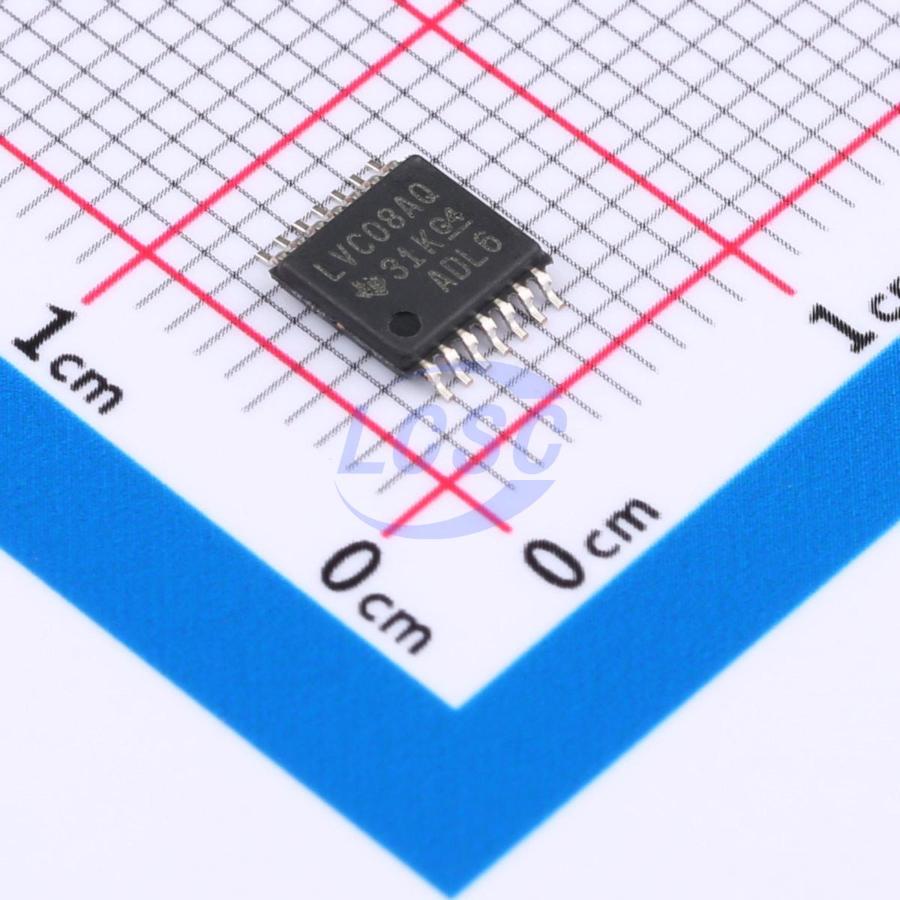

SN74LVC08AQPWRQ1

The SN74LVC08A-Q1 quadruple 2-input positive-AND gate is designed for 2.7 V to 3.6 V CC operation. The device performs the Boolean function Y = A • B or Y = A(overline) + B(overline) in positive logic. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of this device as a translator in a mixed 3.3-V/5-V system environment.

Applications

• Automotive electronics applications
• Level translation in mixed-voltage systems

Key features

• Qualified for automotive applications
• ESD protection exceeds 2000V per Test Method 3015; exceeds 200V under machine model testing with conditions C=200pF, R=0Ω
• Operating voltage range: 1.65V~3.6V
• Inputs tolerant up to 5.5V
• Maximum propagation delay tpd of 4.1ns at 3.3V
• Typical output ground bounce VOLP < 0.8V at VCC=3.3V, TA=25℃
• Typical output VOH undershoot VOHV > 2V at VCC=3.3V, TA=25℃
• Available in D or PW package
• Maximum supply voltage range: -0.5V~6.5V
• Maximum input voltage range: -0.5V~6.5V
• Maximum output voltage range: -0.5V~VCC+0.5V
• Input clamp current (VI<0): -50mA
• Output clamp current (VO<0): -50mA
• Continuous output current: ±50mA
• Continuous current through VCC or GND: ±100mA
• Package thermal resistance θJA: 86℃/W for D package, 113℃/W for PW package
• Storage temperature range: -65℃~150℃
• RoHS compliant; lead-free products compatible with lead-free soldering processes
