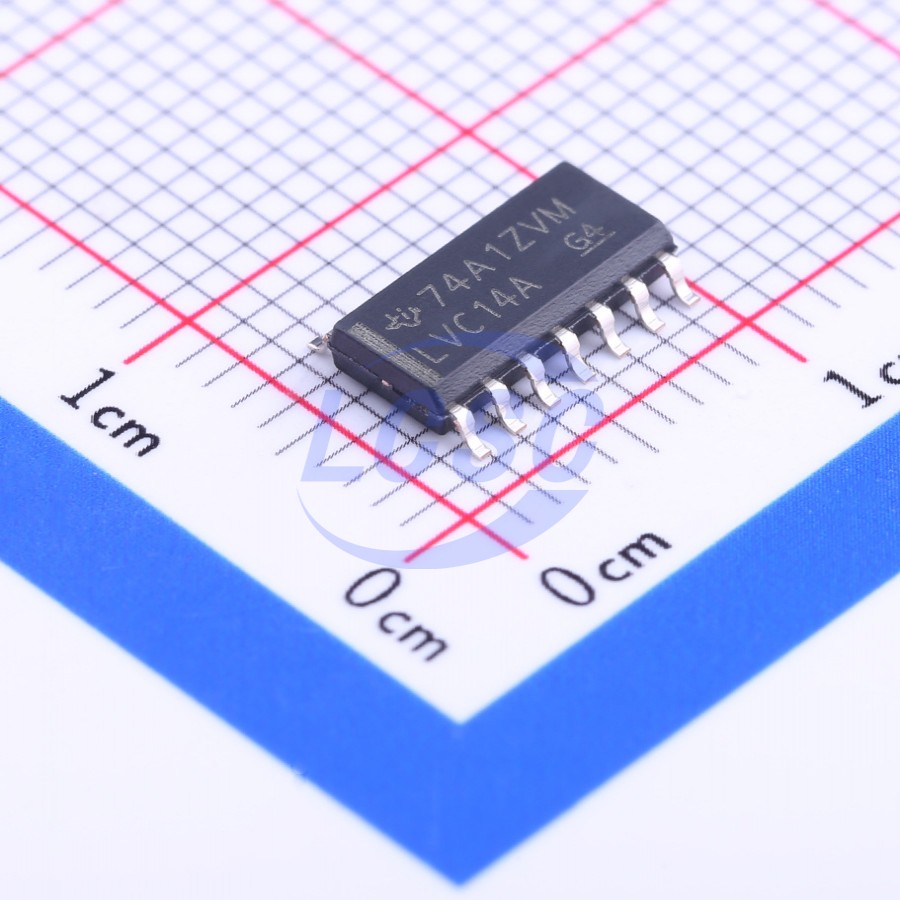

SN74LVC14ADR
Schmitt trigger 1.65V~3.6V 6.2ns@3.3V,50pF 1uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Hex Schmitt-Trigger Inverters
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC14ADR
- Store part #
- C133541
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39,970 in stock
#C133541
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.26 | ₹166.30 |
| 50+ | ₹25.81 | ₹1,290.50 |
| 150+ | ₹22.62 | ₹3,393.00 |
| 500+ | ₹18.64 | ₹9,320.00 |
| 2,500+ | ₹16.87 | ₹42,175.00 |
| 5,000+ | ₹15.81 | ₹79,050.00 |
5 × ₹33.26
₹166.30
excl. GST
₹196.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LVC14ADR
₹166.30 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~3.6V
- Output Logic Level - Low
- 800mV
- Propagation Delay
- 6.2ns@3.3V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Input Logic Level - Low
- 150mV~800mV
- Input Logic Level - High
- 1.3V~2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.25V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
The SN54LVC14A hex Schmitt-trigger inverter is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC14A hex Schmitt-trigger inverter is designed for 1.65-V to 3.6-V VCC operation. The devices contain six independent inverters and perform the Boolean function Y = A̅. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V or 5-V system environment.
Applications
- Barcode Scanner
- Cable Solutions
- E-Books
- Embedded PCs
- Field Transmitter: Temperature or Pressure Sensors
- Fingerprint Biometrics
- HVAC: Heating, Ventilating, and Air Conditioning
- Network-Attached Storage (NAS)
- Server Motherboard and PSU
- Software Defined Radio (SDR)
- TV: High Definition (HDTV), LCD, and Digital Video Communications Systems
- Wireless Data Access Cards, Headsets, Keyboards, Mice, and LAN Cards
Key features
- Operate From 1.65 V to 3.6 VCC
- Specified From -40 °C to 85 °C, -40 °C to 125 °C, and -55 °C to 125 °C
- Inputs Accept Voltages to 5.5 V
- Max tpd of 6.4 ns at 3.3 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25 °C
- Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25 °C
- Support Live Insertion, Partial-Power-Down Mode and Back Drive protection
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
