UMW

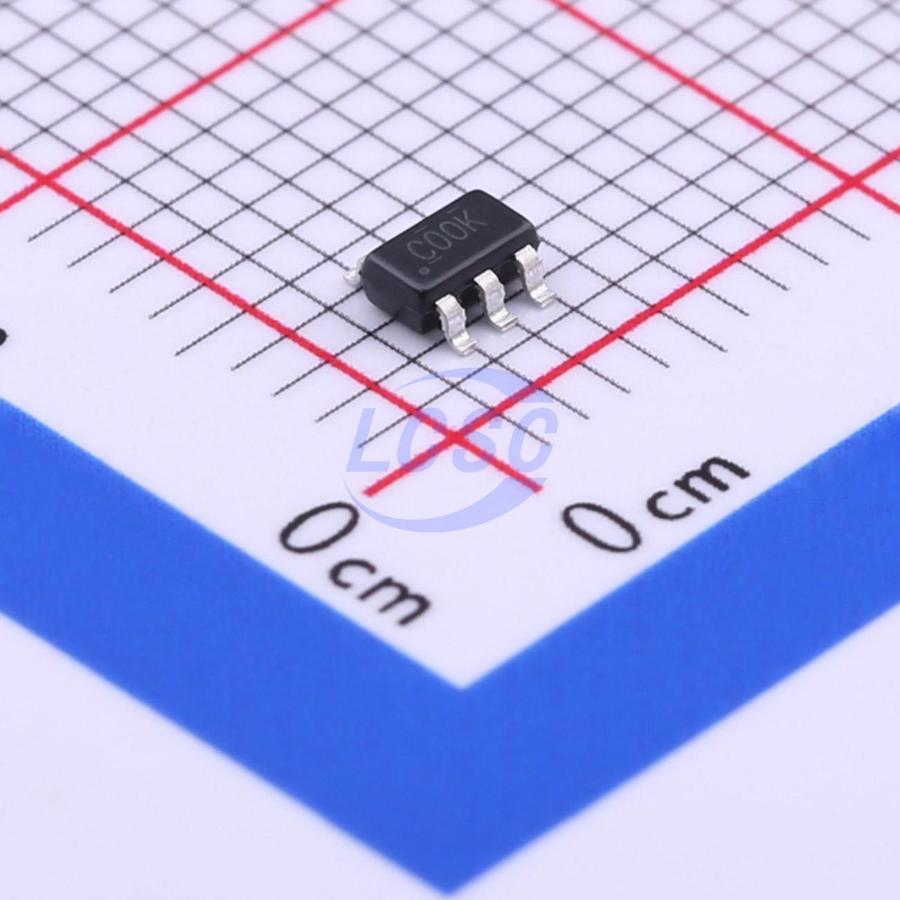

SN74LVC1G00DBVR(UMW)

10uA 1.65V~5.5V 10ns@5V,15pF SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS3 CompliantActive

2-input NAND integrated circuit

Manufacturer: UMW
Manufacturer part #: SN74LVC1G00DBVR(UMW)
Store part #: C434066
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

22,290 in stock

#C434066

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹6.18	₹61.80
100+	₹4.92	₹492.00
300+	₹4.30	₹1,290.00
3,000+	₹3.29	₹9,870.00
6,000+	₹2.92	₹17,520.00
9,000+	₹2.74	₹24,660.00

Quantity (min 10, multiples of 10)

10 × ₹6.18

₹61.80

excl. GST

₹72.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G00DBVR(UMW)

₹61.80 for 10 + GST

Specifications

Operating Temperature: -40℃~+105℃
Input Logic Level - High: 1.7V
Logic Family: 74LVC Series
Output Logic Level - High: 1.64V;1.47V;2.15V;2.73V;4V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Output Logic Level - Low: 10mV;110mV;200mV;350mV
Propagation Delay: 10ns@5V,15pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.041 g

Overview

UMW SN74LVC1G00 is a 2-input NAND gate IC that performs the logic functions Y = A×B (overline) and Y = A (overline) + B (overline). Designed with advanced CMOS process technology, it features low power consumption and high output drive capability. The device operates with supply voltage VCC ranging from 1.65V to 5.5V and is available in compact package options including SOT23-5/SC70-5/SOT-553, SFN/SON-6, DSBGA-5, and X2SON-5, making it well-suited for miniaturized low-power handheld devices, AI applications, and more.
