TWGMC

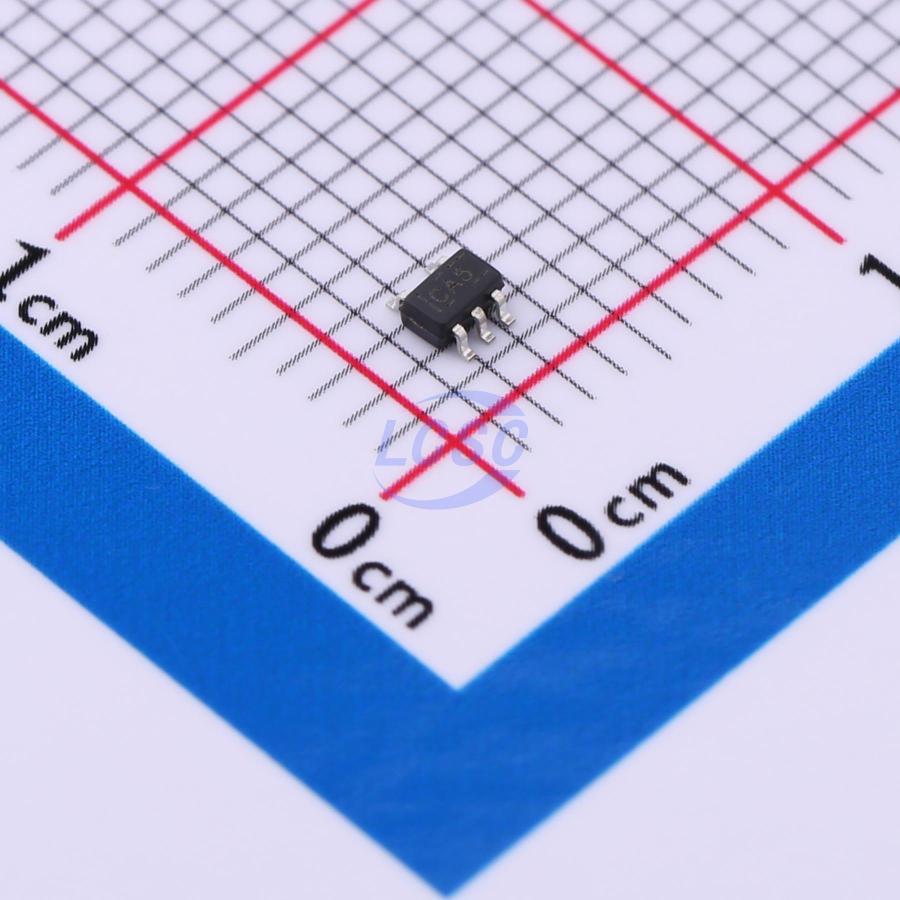

SN74LVC1G00DCKR

1.65V~5.5V 3.4ns@5V,15pF 100nA SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS CompliantActive

Functions and Applications of CMOS Logic Gate Circuits

Manufacturer: TWGMC
Manufacturer part #: SN74LVC1G00DCKR
Store part #: C5279046
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,080 in stock

#C5279046

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹7.33	₹73.30
100+	₹5.86	₹586.00
300+	₹5.13	₹1,539.00
3,000+	₹4.25	₹12,750.00
6,000+	₹3.81	₹22,860.00
9,000+	₹3.59	₹32,310.00

Quantity (min 10, multiples of 10)

10 × ₹7.33

₹73.30

excl. GST

₹86.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G00DCKR

₹73.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 10mV;110mV;200mV;350mV
Propagation Delay: 3.4ns@5V,15pF
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+85℃
Input Logic Level - High: 1.7V;2V
Output Logic Level - High: 1.64V;1.47V;2.15V;2.73V;4V
Quiescent Current(Iq): 100nA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.03 g

Overview
