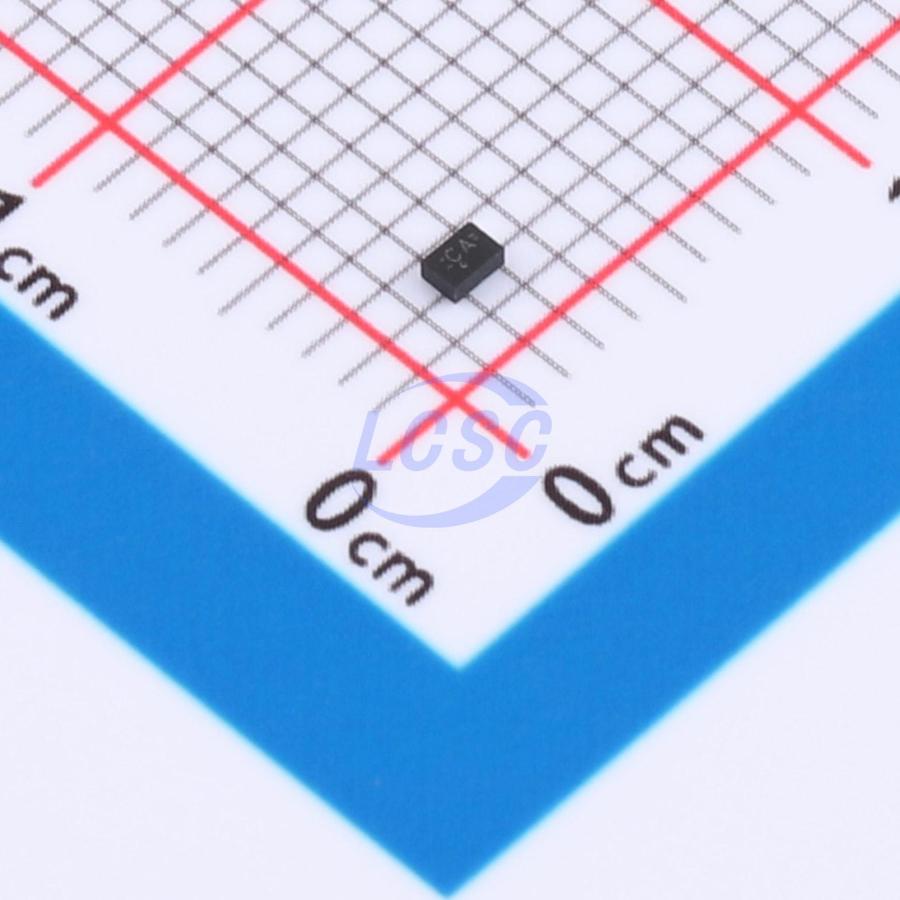

SN74LVC1G00DRYR

1.65V~5.5V 4.3ns@5V,50pF 10uA SON-6(1x1.5) Gates and Inverters RoHS

SON-6(1x1.5)ROHS3 CompliantActive

Single 2-Input Positive-NAND Gate

Manufacturer: TI
Manufacturer part #: SN74LVC1G00DRYR
Store part #: C2878128
Package / case: SON-6(1x1.5)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

810 in stock

#C2878128

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹20.10	₹100.50
50+	₹19.67	₹983.50
150+	₹19.38	₹2,907.00
500+	₹19.09	₹9,545.00

Quantity (min 5, multiples of 5)

5 × ₹20.10

₹100.50

excl. GST

₹118.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

SN74LVC1G00DRYR

₹100.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;450mV;300mV;400mV;550mV
Propagation Delay: 4.3ns@5V,50pF
Features: Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
Input Logic Level - Low: 700mV~800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V~2V
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.117 g

Overview

This single 2-input positive-NAND gate is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G00 performs the Boolean function Y = (A x B)(overline) or Y = A(overline) + B(overline) in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The SN74LVC1G00 is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm x 0.8 mm.

Applications

AV Receiver
Audio Dock: Portable
Blu-ray Player and Home Theater
Embedded PC
MP3 Player/Recorder (Portable Audio)
Personal Digital Assistant (PDA)
Power: Telecom/Server AC/DC Supply: Single
Controller: Analog and Digital
Solid State Drive (SSD): Client and Enterprise
TV: LCD/Digital and High-Definition (HDTV)
Tablet: Enterprise
Video Analytics: Server
Wireless Headset, Keyboard, and Mouse

Key features

Available in the Ultra Small 0.64–mm² Package (DPW) With 0.5 mm Pitch
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Provides Down Translation to VCC
Max tpd of 3.8 ns at 3.3 V
Low Power Consumption, 10-μA Max ICC
±24-mA Output Drive at 3.3 V
Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
1000-V Charged-Device Model (C101)
