XBLWDatasheet (PDF)

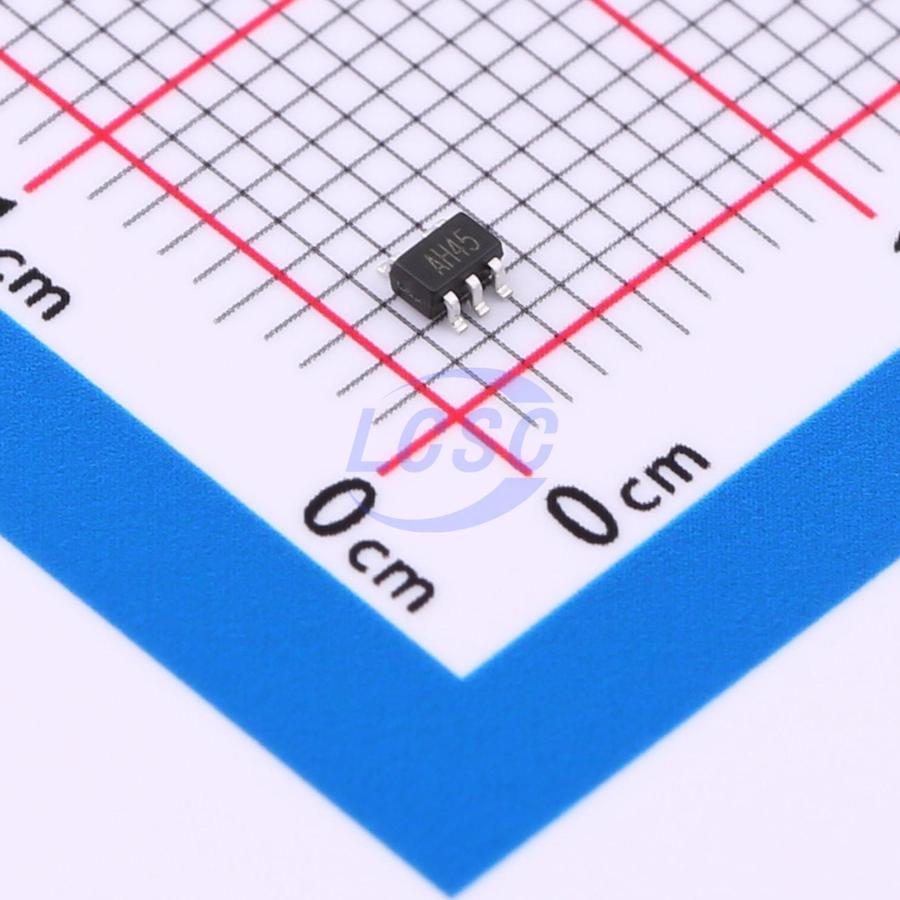

SN74LVC1G00T353(XBLW)
Schmitt trigger 1.65V~5.5V 13.5ns@4.5V 4uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
Single 2-input NAND Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LVC1G00T353(XBLW)
- Store part #
- C41408432
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,940 in stock
#C41408432
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.03 | ₹50.30 |
| 100+ | ₹3.98 | ₹398.00 |
| 300+ | ₹3.45 | ₹1,035.00 |
| 3,000+ | ₹3.06 | ₹9,180.00 |
| 6,000+ | ₹2.74 | ₹16,440.00 |
| 9,000+ | ₹2.58 | ₹23,220.00 |
10 × ₹5.03
₹50.30
excl. GST
₹59.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G00T353(XBLW)
₹50.30 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV~800mV
- Propagation Delay
- 13.5ns@4.5V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The SN74LVC1G00 is a single 2 - input NAND Gate. Inputs can be driven from either 3.3 V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt - trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.
Applications
- AV Receiver
- Embedded PC
- Tablet: Enterprise
- Audio Dock: Portable
- Blu - ray Player and Home Theater
- Video Analytics: Server
- Wireless Headset, Keyboard, and Mouse
- Personal Digital Assistant (PDA)
- MP3 Player/Recorder (Portable Audio)
- Solid State Drive (SSD): Client and Enterprise
- TV: LCD/Digital and High - Definition (HDTV)
- Power: Telecom/Server AC/DC Supply: Single Conti
Key features
- Wide supply voltage range from 1.65V to 5.5V
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Input accepts voltages up to 5V
- Specified from - 40℃ to + 125℃
- Packaging information: SOT - 23 - 5/SOT - 353
