UMWDatasheet (PDF)

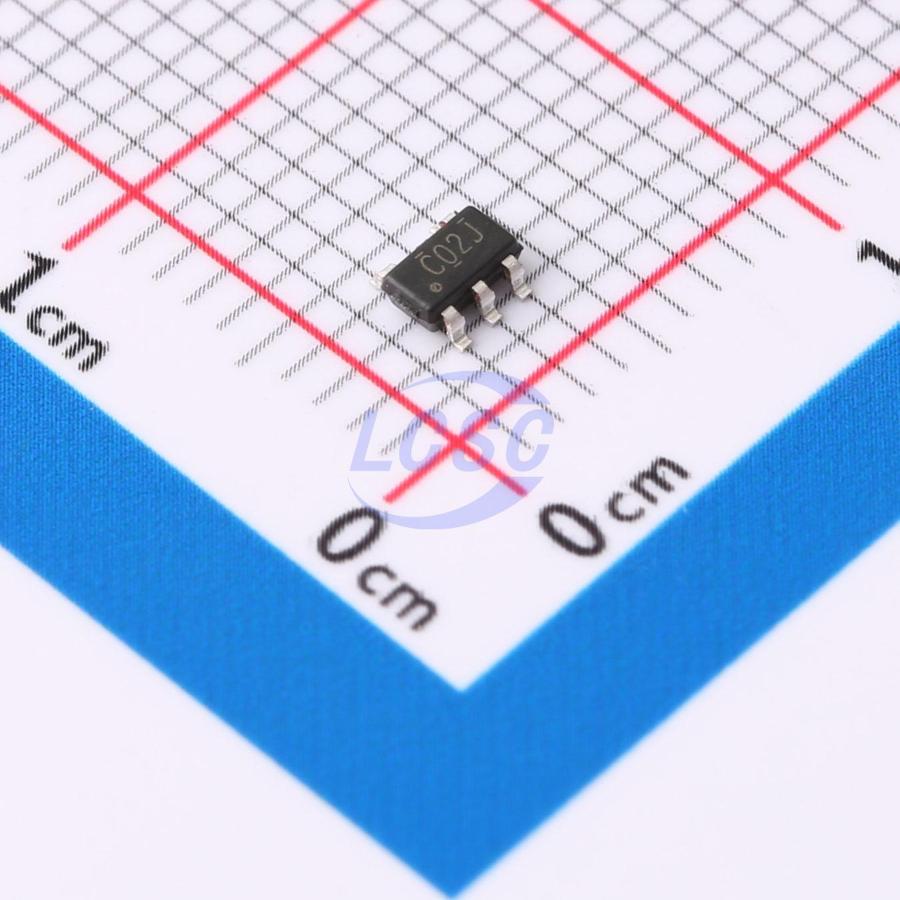

SN74LVC1G02DBVR(UMW)
10uA 1.65V~5.5V 4.4ns@5V,15pF SOT23-5 Gates and Inverters RoHS
SOT23-5ROHS3 CompliantActive
Single 2-input NOR Gate
- Manufacturer
- UMW
- Manufacturer part #
- SN74LVC1G02DBVR(UMW)
- Store part #
- C7394016
- Package / case
- SOT23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59,400 in stock
#C7394016
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.50 | ₹65.00 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.25 | ₹1,275.00 |
| 3,000+ | ₹3.68 | ₹11,040.00 |
| 6,000+ | ₹3.23 | ₹19,380.00 |
| 9,000+ | ₹3.00 | ₹27,000.00 |
10 × ₹6.50
₹65.00
excl. GST
₹76.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G02DBVR(UMW)
₹65.00 for 10 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- 74LVC
- Operating Temperature
- -40℃~+85℃
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Propagation Delay
- 4.4ns@5V,15pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
This device is a single 2-input NOR gate available in three ultra-compact package options.
Key features
- Ultra-compact SC70-5/SOT23-5/DFN6 (1.5×1.0mm) packages
- Typical propagation delay of 2.4ns at 5V
- 24mA source/sink drive capability at 3.0V
- Overvoltage-tolerant inputs; supports 1.65V to 5.5V supply voltage range
- Lead-free design, RoHS compliant
