UMW

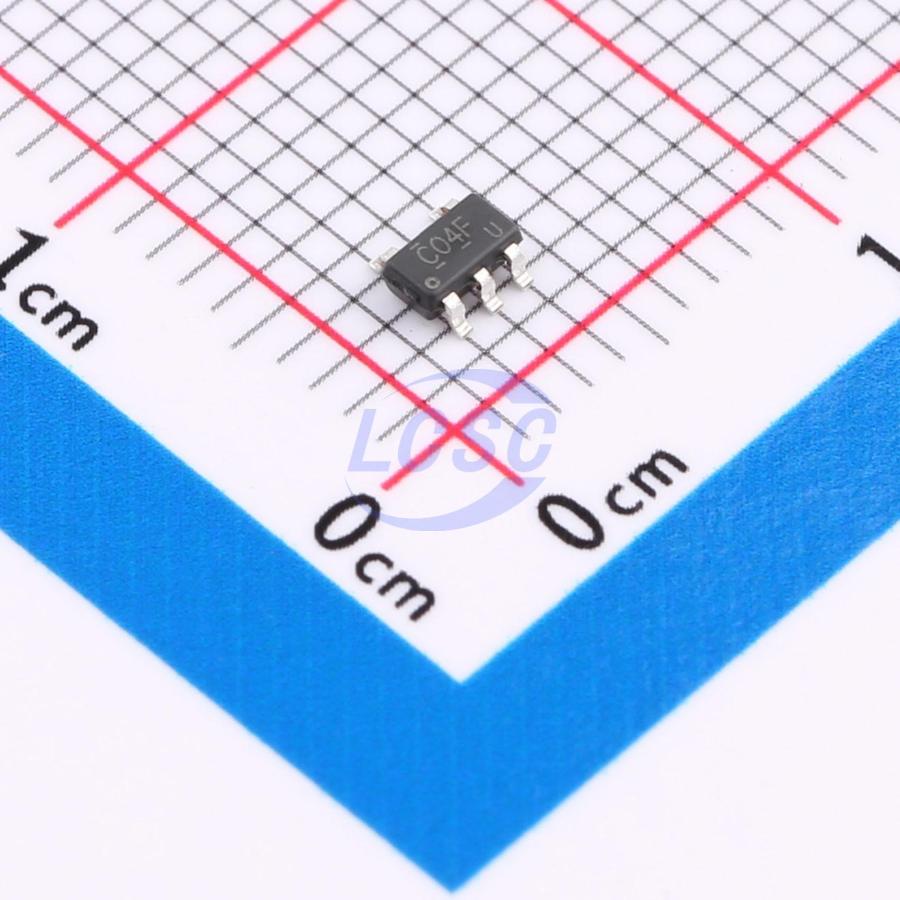

SN74LVC1G04DBVR(UMW)

1.65V~5.5V 10ns@5V,15pF 10uA 1 SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS3 CompliantActive

Manufacturer: UMW
Manufacturer part #: SN74LVC1G04DBVR(UMW)
Store part #: C434067
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

50,350 in stock

#C434067

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹6.02	₹60.20
100+	₹4.66	₹466.00
300+	₹3.97	₹1,191.00
3,000+	₹3.60	₹10,800.00
6,000+	₹3.19	₹19,140.00
9,000+	₹2.98	₹26,820.00

Quantity (min 10, multiples of 10)

10 × ₹6.02

₹60.20

excl. GST

₹71.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G04DBVR(UMW)

₹60.20 for 10 + GST

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 10ns@5V,15pF
Output Logic Level - Low: 10mV;110mV;200mV;350mV
Features: Power shutdown protection
Operating Temperature: -40℃~+105℃
Output Logic Level - High: 1.64V;1.47V;2.15V;2.73V;4V
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.04 g

Overview

UMW SN74LVC1G04 is a single inverter gate IC that performs the logic function Y=Ā. Designed with advanced CMOS technology, it features low power consumption and high output drive capability. The device operates over a VCC range of 1.65V to 5.5V and is available in multiple compact package options, making it suitable for a wide range of applications including high-end precision instruments, miniaturized low-power handheld devices, and artificial intelligence systems.
