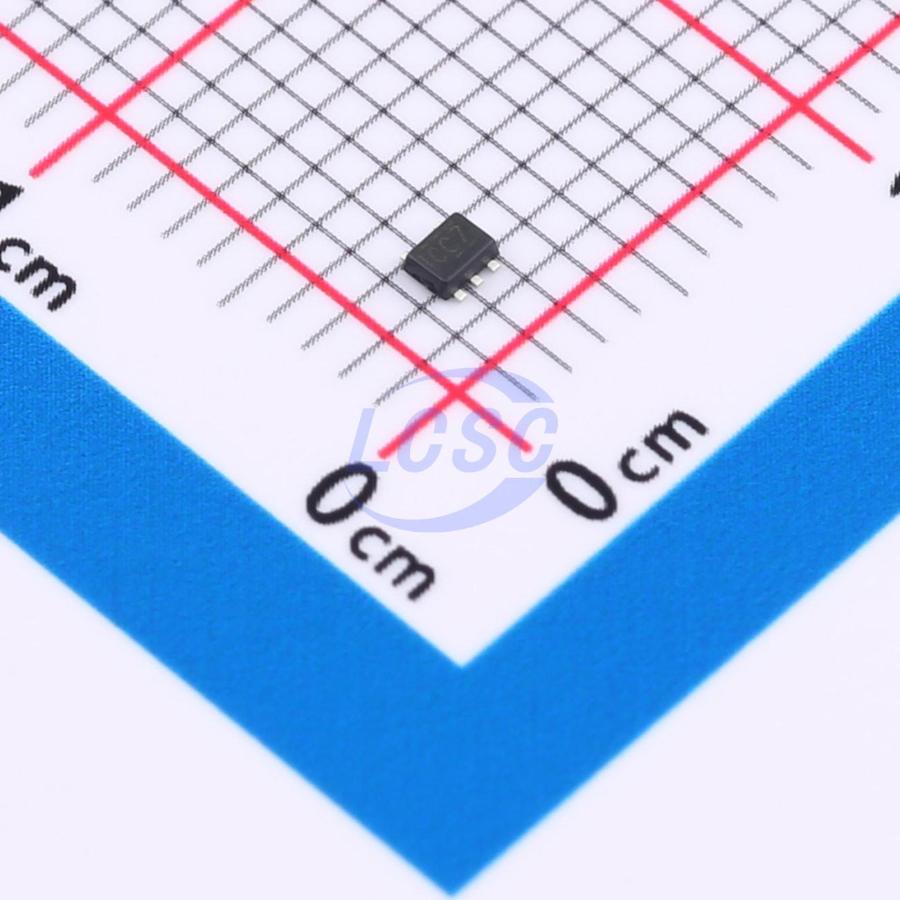

SN74LVC1G04DRLR
1.65V~5.5V 8ns@3.3V,50pF 10uA 1 SOT-553 Gates and Inverters
SOT-553RoHSActive
Single Inverter Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G04DRLR
- Store part #
- C19829625
- Package / case
- SOT-553
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,240 in stock
#C19829625
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.58 | ₹65.80 |
| 100+ | ₹5.72 | ₹572.00 |
| 300+ | ₹5.28 | ₹1,584.00 |
| 1,000+ | ₹4.95 | ₹4,950.00 |
| 4,000+ | ₹4.68 | ₹18,720.00 |
| 8,000+ | ₹4.56 | ₹36,480.00 |
10 × ₹6.58
₹65.80
excl. GST
₹77.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74LVC1G04DRLR
₹65.80 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 8ns@3.3V,50pF
- Features
- Power shutdown protection;Power-off protection function
- Input Logic Level - High
- 1.7V;2V
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
The SN74LVC1G04 is a single inverter gate, it provides the function Y = A. This device has power-down protective circuit, preventing device destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation voltage range: 1.65~5.5V
- Low power current: lCC = 10μA(Max)
- ±24mA output drive (VCC = 3.3V)
- High noise immunity
- Power down protection
- ESD Protection Exceeds JESD22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
- SOT553 Package Available
