SN74LVC1G04DRYR

1.65V~5.5V 3.7ns@5V,50pF 10uA 1 USON-6(1x1.5) Gates and Inverters RoHS

USON-6(1x1.5)ROHS3 CompliantActive

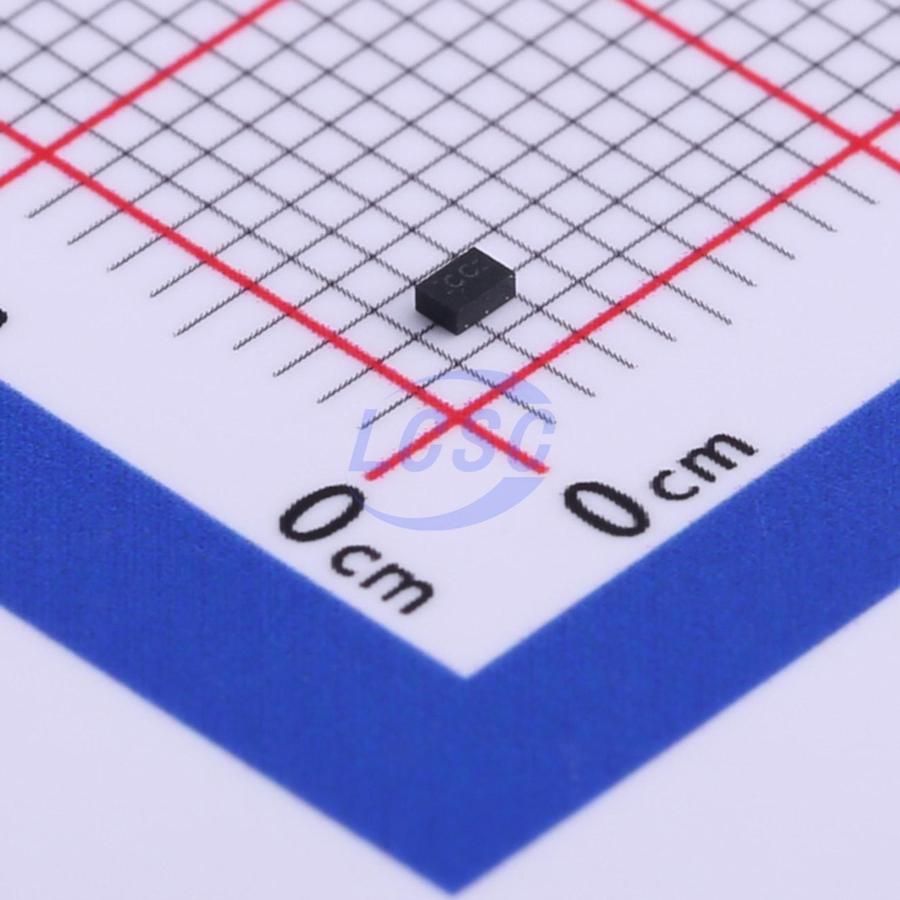

Single Inverter Gate

Manufacturer: TI
Manufacturer part #: SN74LVC1G04DRYR
Store part #: C507243
Package / case: USON-6(1x1.5)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,810 in stock

#C507243

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹32.40	₹162.00
50+	₹25.43	₹1,271.50
150+	₹22.03	₹3,304.50
500+	₹19.00	₹9,500.00
2,500+	₹18.16	₹45,400.00
5,000+	₹17.66	₹88,300.00

Quantity (min 5, multiples of 5)

5 × ₹32.40

₹162.00

excl. GST

₹191.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

SN74LVC1G04DRYR

₹162.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 400mV
Propagation Delay: 3.7ns@5V,50pF
Features: Power shutdown protection
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 700mV~800mV
Input Logic Level - High: 1.7V~2V
Output Logic Level - High: 2.4V
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.01 g

Overview

This single inverter gate is designed for 1.65-V to 5.5-V Vcc operation. The SN74LVC1G04 device performs the Boolean function Y = A̅. The CMOS device has high output drive while maintaining low static power dissipation over a broad Vcc operating range. The SN74LVC1G04 device is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.

Applications

AV Receiver
Audio Dock: Portable
Blu-ray Player and Home Theater
Embedded PC
MP3 Player/Recorder (Portable Audio)
Personal Digital Assistant (PDA)
Power: Telecom/Server AC/DC Supply: Single
Controller: Analog and Digital
Solid State Drive (SSD): Client and Enterprise
TV: LCD/Digital and High-Definition (HDTV)
Tablet: Enterprise
Video Analytics: Server
Wireless Headset, Keyboard, and Mouse

Key features

Available in the Ultra-Small 0.64–mm² Package (DPW) with 0.5-mm Pitch
Supports 5.0-V VCC Operation
Inputs Accept Voltages up to 5.5 V Allowing Down Translation to VCC
Max tpd of 3.3 ns at 3.3-V
Low Power Consumption, 10-μA Max ICC
±24-mA Output Drive at 3.3-V
Ioff Supports Live-Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
