UMW

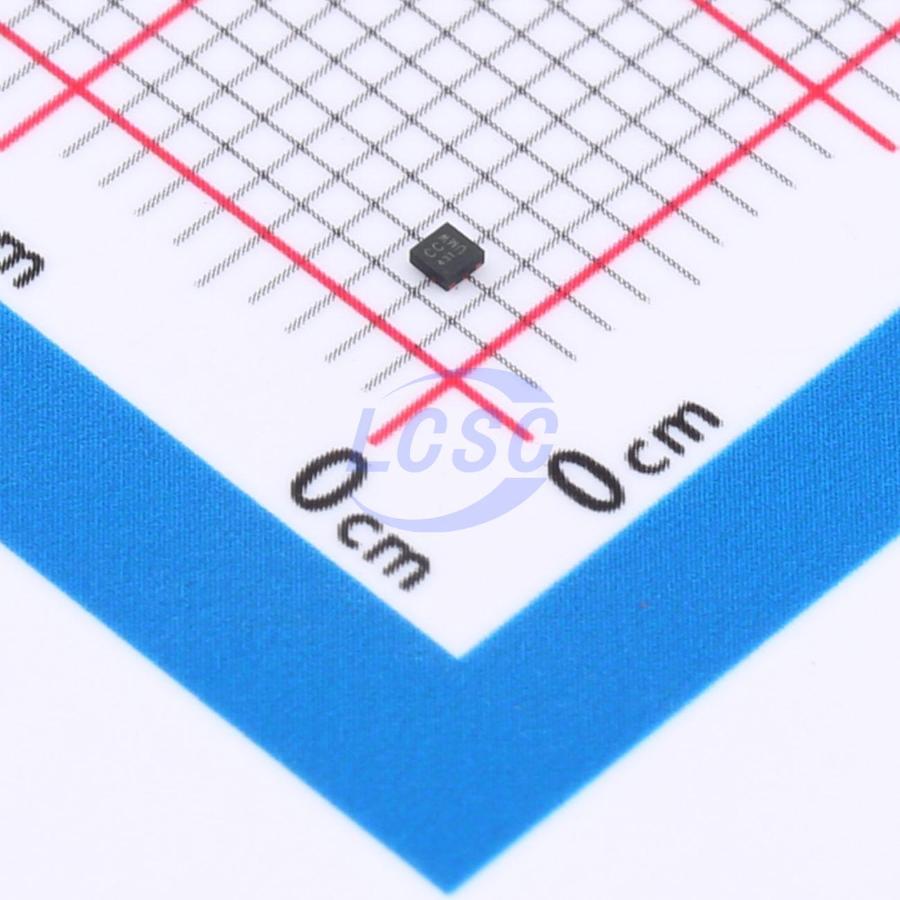

SN74LVC1G04DSFR(UMW)

1.65V~5.5V 10ns@5V,15pF 100nA 1 DFN-6(1x1) Gates and Inverters RoHS

DFN-6(1x1)ROHS CompliantActive

Manufacturer: UMW
Manufacturer part #: SN74LVC1G04DSFR(UMW)
Store part #: C42165060
Package / case: DFN-6(1x1)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,440 in stock

#C42165060

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹7.91	₹79.10
100+	₹6.20	₹620.00
300+	₹5.36	₹1,608.00
1,000+	₹4.72	₹4,720.00
5,000+	₹4.22	₹21,100.00
10,000+	₹3.96	₹39,600.00

Quantity (min 10, multiples of 10)

10 × ₹7.91

₹79.10

excl. GST

₹93.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 10,000 per reel

SN74LVC1G04DSFR(UMW)

₹79.10 for 10 + GST

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 10ns@5V,15pF
Output Logic Level - Low: 10mV;110mV;200mV;350mV
Features: Power shutdown protection
Input Logic Level - High: 1.7V
Input Logic Level - Low: 700mV
Operating Temperature: -40℃~+105℃
Output Logic Level - High: 1.64V;1.47V;2.15V;2.73V;4V
Quiescent Current(Iq): 100nA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.019 g

Overview

UMW SN74LVC1G04 is a single inverter gate IC that performs the logic function Y=Ā. Designed with advanced CMOS technology, it features low power consumption and high output drive capability. The device operates over a VCC range of 1.65V to 5.5V and is available in multiple compact package options, making it suitable for a wide range of applications including high-end precision instruments, miniaturized low-power handheld devices, and artificial intelligence systems.
