UMW

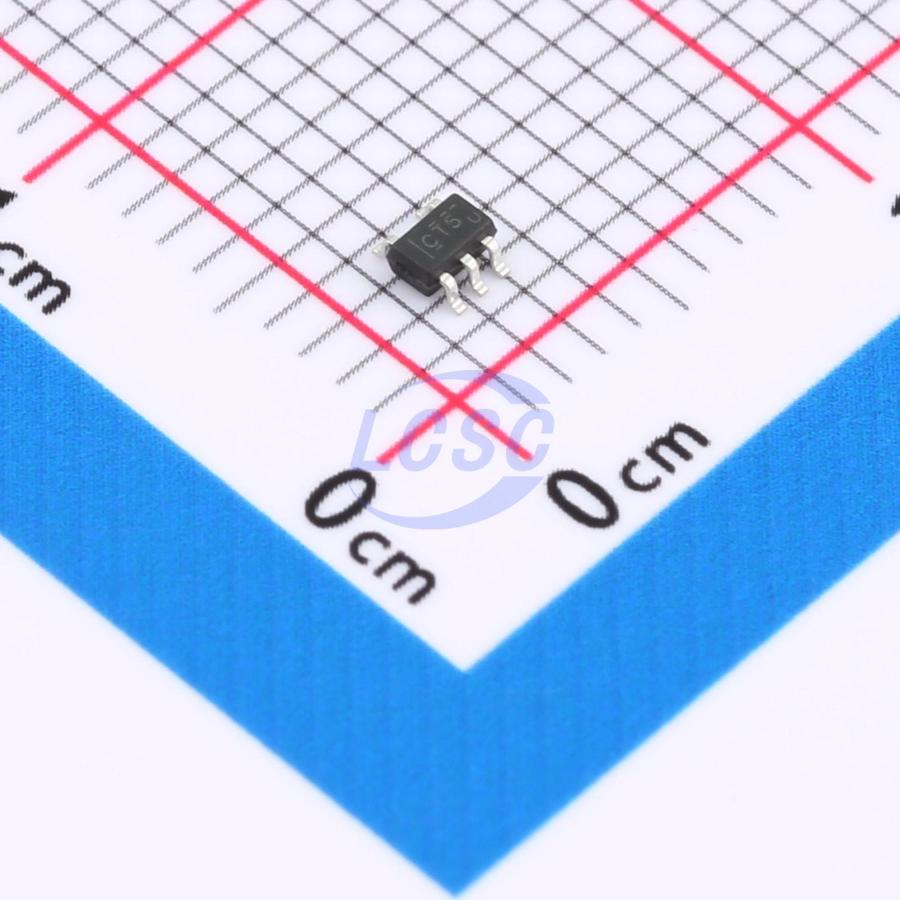

SN74LVC1G06DCKR(UMW)

1.65V~5.5V 2.5ns@5V,15pF 10uA 1 SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS CompliantActive

Single Inverter with Open Drain Output

Manufacturer: UMW
Manufacturer part #: SN74LVC1G06DCKR(UMW)
Store part #: C48946881
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,910 in stock

#C48946881

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹6.43	₹64.30
100+	₹5.08	₹508.00
300+	₹4.41	₹1,323.00
3,000+	₹3.90	₹11,700.00
6,000+	₹3.49	₹20,940.00
9,000+	₹3.29	₹29,610.00

Quantity (min 10, multiples of 10)

10 × ₹6.43

₹64.30

excl. GST

₹75.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G06DCKR(UMW)

₹64.30 for 10 + GST

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 2.5ns@5V,15pF
Output Logic Level - Low: 550mV
Features: Power shutdown protection
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.038 g

Overview

UMW 74LVC1G06 is a high-performance single inverter with open-drain output, operating over a supply voltage range of 1.65V to 5.5V. The output stage features an open-drain structure with overvoltage tolerance. This allows the UMW 74LVC1G06 to interface 5.0V circuits with circuits operating at any voltage between 0V and +7.0V.

Key features

24mA output sink capability, pull-up voltage range 0V to 7.0V
Near-zero quiescent supply current for significantly reduced system power consumption
Ultra-high speed: typical propagation delay tPD = 2.5 ns at VCC = 5.0V
Designed for 1.65V to 5.5V VCC operation, CMOS compatible
Over-voltage tolerant inputs: VIN 0V to 7.0V with VCC between 0.5V to 5.5V
Lead-free, halogen-free/bromine-free flame retardant process, RoHS compliant
Available in compact SC70-5, SOT23-5, and DFN6 packages
Moisture Sensitivity Level: MSL1 for DFN6, MSL3 for SC70-5 and SOT23-5
