TECH PUBLICDatasheet (PDF)

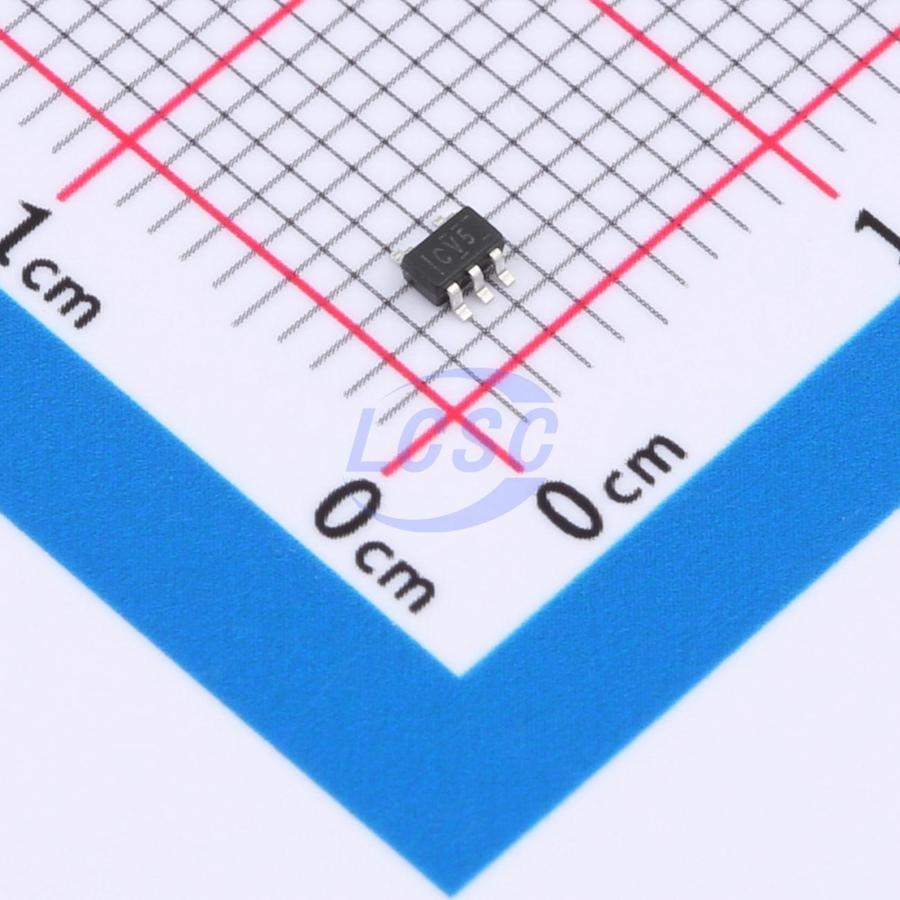

SN74LVC1G07DCKR
1.65V~5.5V 8ns@3.3V,50pF 10uA SOT-353 Gates and Inverters
SOT-353RoHSActive
BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G07DCKR
- Store part #
- C19829628
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,890 in stock
#C19829628
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.24 | ₹72.40 |
| 100+ | ₹5.70 | ₹570.00 |
| 300+ | ₹4.95 | ₹1,485.00 |
| 3,000+ | ₹4.38 | ₹13,140.00 |
| 6,000+ | ₹3.92 | ₹23,520.00 |
| 9,000+ | ₹3.69 | ₹33,210.00 |
10 × ₹7.24
₹72.40
excl. GST
₹85.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G07DCKR
₹72.40 for 10 + GST
Specifications
- output type
- Open-drain
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 8ns@3.3V,50pF
- Output Logic Level - Low
- 800mV
- Features
- Local shutdown mode;Rear drive protection
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V;2V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;1
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs, Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Inputs and open-drain output accept voltage up to 5.5V
- Low power current: Icc = 10μA(Max)
- ±24mA output drive (Vcc = 3.3V)
- Power down protection
- ESD Protection Exceeds JESD22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
- SOT553 Package Available
