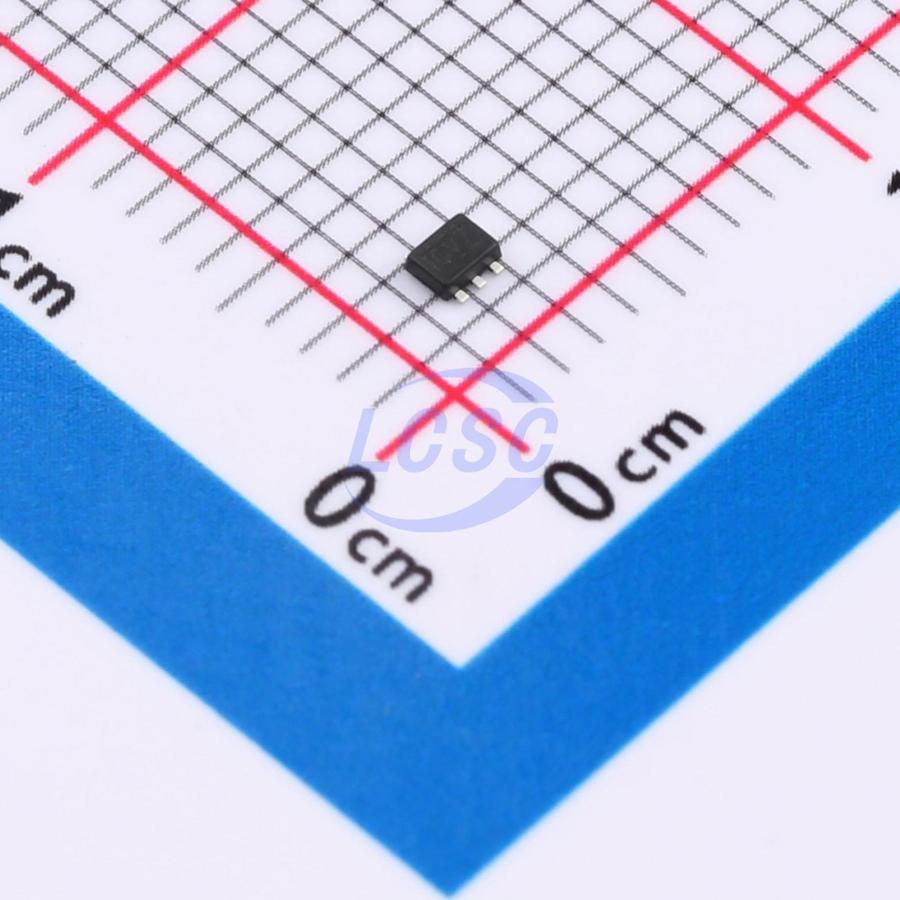

SN74LVC1G07DRLR
1.65V~5.5V 7ns@5V,50pF 10uA SOT-553 Gates and Inverters
SOT-553RoHSActive
BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G07DRLR
- Store part #
- C19829624
- Package / case
- SOT-553
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,020 in stock
#C19829624
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.66 | ₹76.60 |
| 100+ | ₹6.79 | ₹679.00 |
| 300+ | ₹6.36 | ₹1,908.00 |
| 1,000+ | ₹6.03 | ₹6,030.00 |
| 4,000+ | ₹5.77 | ₹23,080.00 |
| 8,000+ | ₹5.65 | ₹45,200.00 |
10 × ₹7.66
₹76.60
excl. GST
₹90.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74LVC1G07DRLR
₹76.60 for 10 + GST
Specifications
- output type
- Open-drain
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 7ns@5V,50pF
- Output Logic Level - Low
- 450mV;600mV;800mV
- Features
- Local shutdown mode;Rear drive protection
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;1
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
The SN74LVC1G07 is a single Buffer/Driver with open-drain output. This device has power-down protective circuit, preventing device destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones
- Personal Navigation/ GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Inputs and open-drain output accept voltage up to 5.5V
- Low power current: ICC = 10μA (Max)
- ±24mA output drive (VCC = 3.3V)
- Power down protection
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
- SOT553 Package Available
