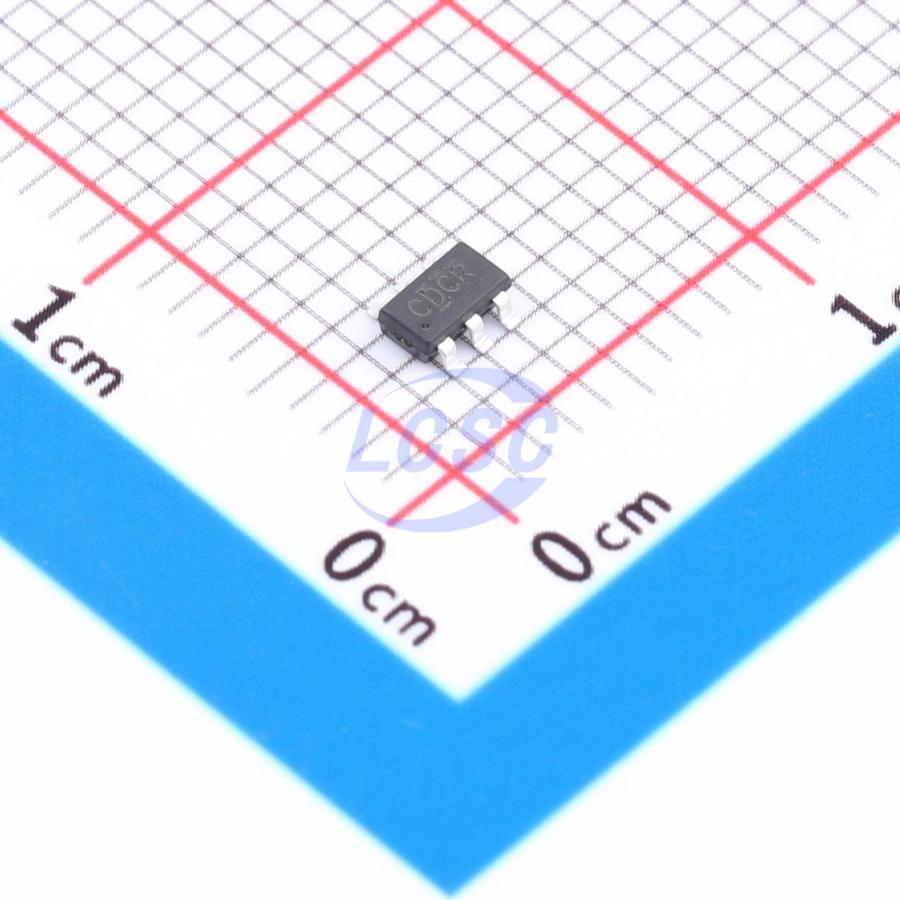

SN74LVC1G0832DBVR-TP
1.65V~5.5V 5.9ns@3.3V,50pF 10uA SOT-23-6 Gates and Inverters RoHS
SOT-23-6ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G0832DBVR-TP
- Store part #
- C51939609
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,945 in stock
#C51939609
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.03 | ₹50.15 |
| 50+ | ₹7.87 | ₹393.50 |
| 150+ | ₹6.79 | ₹1,018.50 |
| 500+ | ₹5.98 | ₹2,990.00 |
| 3,000+ | ₹5.33 | ₹15,990.00 |
| 6,000+ | ₹5.00 | ₹30,000.00 |
5 × ₹10.03
₹50.15
excl. GST
₹59.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G0832DBVR-TP
₹50.15 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 5.9ns@3.3V,50pF
- Output Logic Level - Low
- 450mV;300mV;550mV
- Input Logic Level - High
- 1.7V~5.5V;2V~5.5V
- Input Logic Level - Low
- 0V~700mV;0V~800mV
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
This device is a single 3-input positive-logic AND-OR gate that performs the Boolean function Y = (A AND B) OR C. By connecting one input to ground or supply voltage, the device can implement two additional functions. When C is tied to ground, the device operates as a 2-input AND gate with output Y = A AND B. When A is connected to supply voltage, the device operates as a 2-input OR gate with output Y = B OR C. When B is connected to supply voltage, the device likewise operates as a 2-input OR gate with output Y = A OR C.
Applications
- AV receivers
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
Key features
- Wide supply voltage range: 1.65V ~ 5.5V
- Inputs tolerant up to 5.5V
- Shutdown current supports partial power-down mode
- Low power consumption, maximum supply current 10μA
- ESD protection exceeds JESD 22 standard
- Human Body Model: 2000V
- Machine Model: 200V
- Charged Device Model: 1000V
