UMW

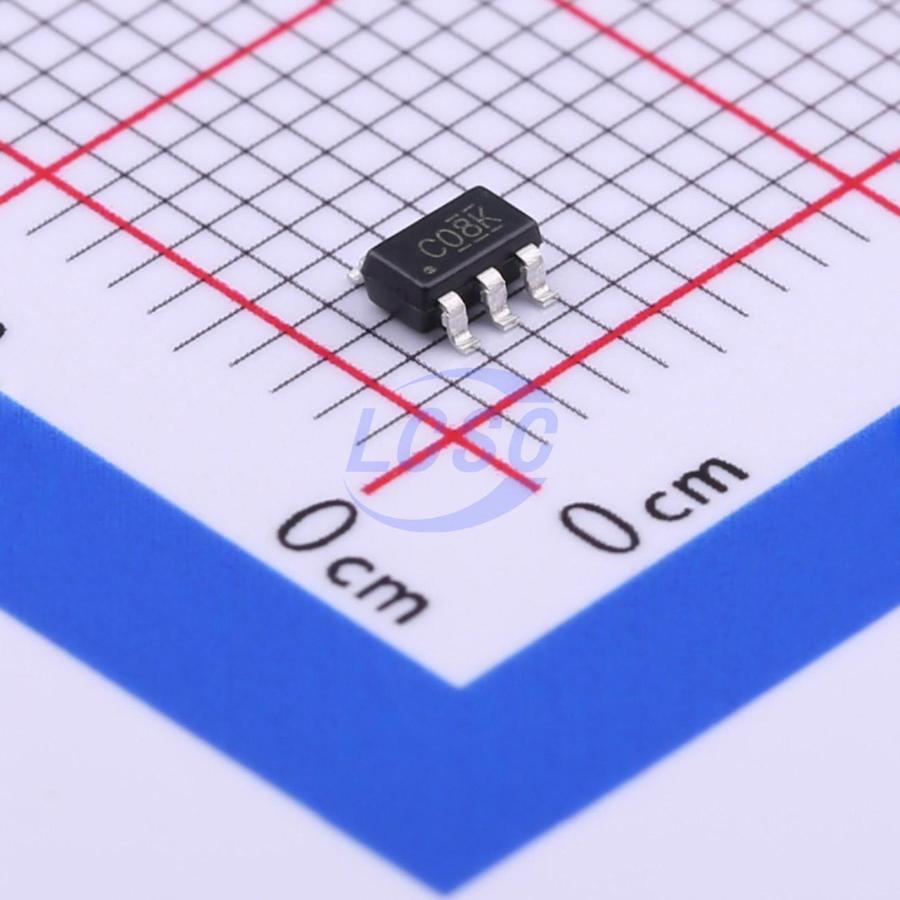

SN74LVC1G08DBVR(UMW)

AND Gate IC 1 Channel SOT-23-5

SOT-23-5ROHS CompliantActive

2-input AND gate integrated circuit

Manufacturer: UMW
Manufacturer part #: SN74LVC1G08DBVR(UMW)
Store part #: C434068
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

30,650 in stock

#C434068

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.49	₹54.90
100+	₹4.25	₹425.00
300+	₹3.63	₹1,089.00
3,000+	₹3.15	₹9,450.00
6,000+	₹2.78	₹16,680.00
9,000+	₹2.59	₹23,310.00

Quantity (min 10, multiples of 10)

10 × ₹5.49

₹54.90

excl. GST

₹64.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G08DBVR(UMW)

₹54.90 for 10 + GST

Specifications

Operating Temperature: -40℃~+105℃
Input Logic Level - High: 1.7V
Logic Family: 74LVC Series
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Propagation Delay: 10ns@5V,15pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.041 g

Overview

UMW SN74LVC1G08 is a 2-input AND gate IC capable of performing the logic operations Y=A·B and Y=A+B. Designed with advanced CMOS technology, it features low power consumption and high output drive capability. The device operates over a supply voltage VCC range of 1.65V to 5.5V and is available in multiple compact package options, making it suitable for a wide range of applications including high-end precision instruments, miniaturized low-power handheld devices, and artificial intelligence.
