UMWDatasheet (PDF)

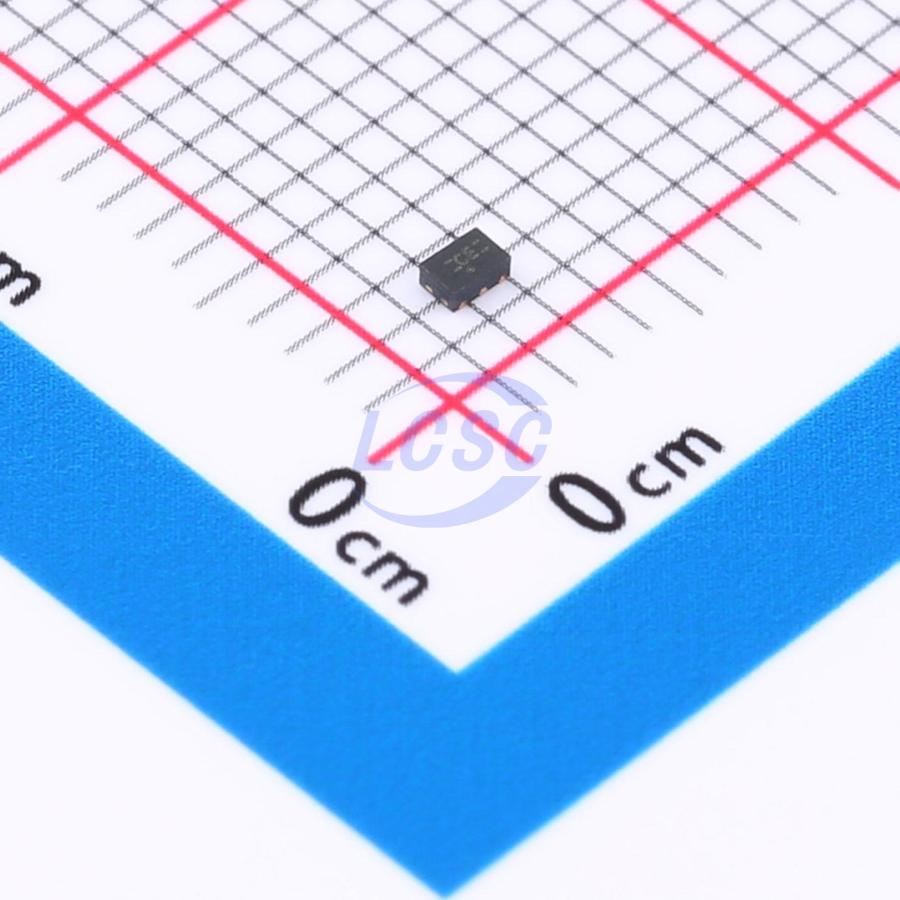

SN74LVC1G08DRYR(UMW)
10uA 1.65V~5.5V 10ns DFN-6(1x1.5) Gates and Inverters RoHS
DFN-6(1x1.5)ROHS3 CompliantActive
2-input AND gate integrated circuit
- Manufacturer
- UMW
- Manufacturer part #
- SN74LVC1G08DRYR(UMW)
- Store part #
- C7598676
- Package / case
- DFN-6(1x1.5)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,230 in stock
#C7598676
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.41 | ₹74.10 |
| 100+ | ₹5.82 | ₹582.00 |
| 300+ | ₹5.03 | ₹1,509.00 |
| 1,000+ | ₹4.43 | ₹4,430.00 |
| 5,000+ | ₹3.96 | ₹19,800.00 |
| 10,000+ | ₹3.72 | ₹37,200.00 |
10 × ₹7.41
₹74.10
excl. GST
₹87.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SN74LVC1G08DRYR(UMW)
₹74.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Logic Family
- 74LVC
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 2;2
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 10ns
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.413 g
Overview
UMW SN74LVC1G08 is a 2-input AND gate IC capable of performing the logic operations Y=A·B and Y=A+B. Designed with advanced CMOS technology, it features low power consumption and high output drive capability. The device operates over a supply voltage VCC range of 1.65V to 5.5V and is available in multiple compact package options, making it suitable for a wide range of applications including high-end precision instruments, miniaturized low-power handheld devices, and artificial intelligence.
Key features
- Low input current: typical 0.1μA
- Low quiescent current: typical 10μA
