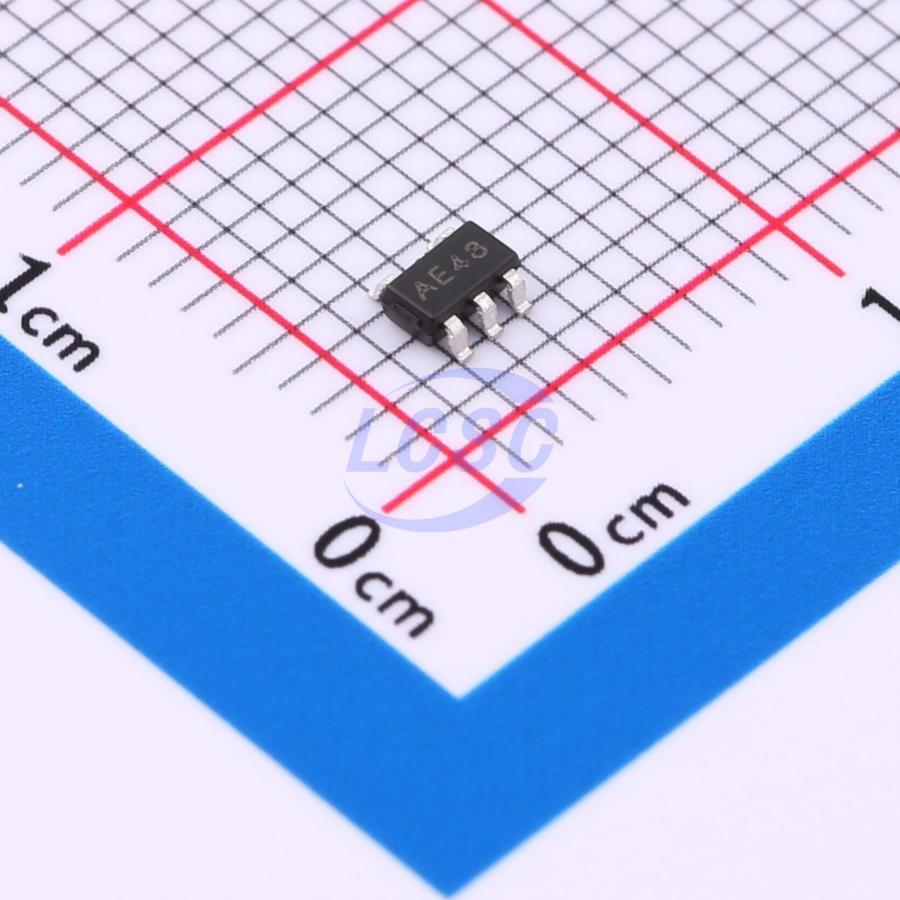

Single 2-input AND Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LVC1G08T235(XBLW)
- Store part #
- C41408433
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,130 in stock
#C41408433
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.07 | ₹50.70 |
| 100+ | ₹4.00 | ₹400.00 |
| 300+ | ₹3.47 | ₹1,041.00 |
| 3,000+ | ₹3.08 | ₹9,240.00 |
| 6,000+ | ₹2.75 | ₹16,500.00 |
| 9,000+ | ₹2.59 | ₹23,310.00 |
10 × ₹5.07
₹50.70
excl. GST
₹59.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G08T235(XBLW)
₹50.70 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 9ns
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.056 g
Overview
The SN74LVC1G08 is a single 2-input AND gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications. Schmitt trigger action at all inputs makes the circuit tolerant of slower input rise and fall time.
Applications
- ATCA Solutions
- Active Noise Cancellation (ANC)
- Barcode Scanner
- Blood Pressure Monitor
- CPAP Machine
- Cable Solutions
- DLP 3D Machine Vision, Hyperspectral Imaging, Optical Networking, and Spectroscopy
- E-Book
- Embedded PC
- Field Transmitter: Temperature or Pressure Sensor
- Fingerprint Biometrics
- HVAC: Heating, Ventilating, and Air Conditioning
- Network-Attached Storage (NAS) Server
- Motherboard and PSU
- Software Defined Radio (SDR)
- TV: High-Definition (HDTV), LCD, and Digital Video Communications System
- Wireless Data Access Card, Headset, Keyboard, Mouse, and LAN Card
- X-ray: Baggage Scanner, Medical, and Dental
Key features
- ±24 mA output drive (VCC = 3.0 V)
- CMOs low power consumption
- Input accepts voltages up to 5V
- Packaging information: SOT-23-5/SOT-353
- Specified from -40 ℃ to +125 ℃
- Wide supply voltage range from 1.65V to 5.5V
