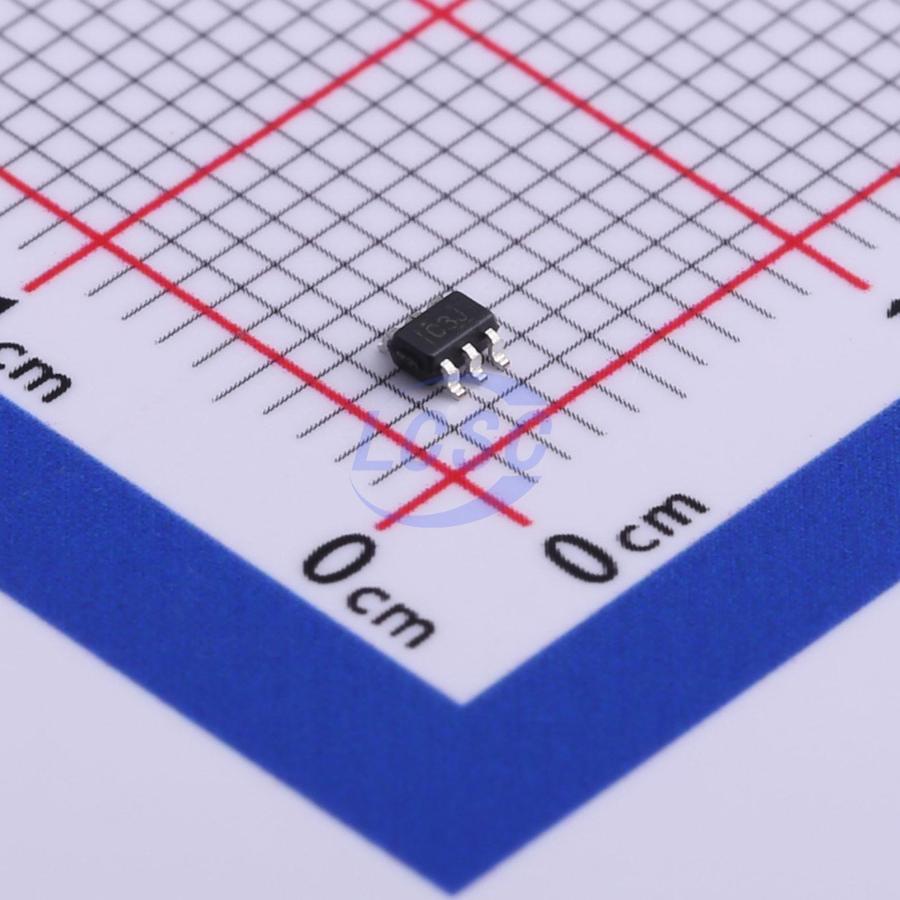

SN74LVC1G11DCKR

1.65V~5.5V 3.5ns@5V,50pF 10uA SC-70-6 Gates and Inverters RoHS

SC-70-6ROHS3 CompliantActive

Single 3-Input Positive-AND Gate

Manufacturer: TI
Manufacturer part #: SN74LVC1G11DCKR
Store part #: C529281
Package / case: SC-70-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,470 in stock

#C529281

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹20.59	₹102.95
50+	₹16.50	₹825.00
150+	₹14.46	₹2,169.00
500+	₹12.93	₹6,465.00
3,000+	₹10.40	₹31,200.00
6,000+	₹9.79	₹58,740.00

Quantity (min 5, multiples of 5)

5 × ₹20.59

₹102.95

excl. GST

₹121.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G11DCKR

₹102.95 for 5 + GST

Specifications

Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 550mV
Propagation Delay: 3.5ns@5V,50pF
Features: Local shutdown mode;Overvoltage-tolerant input
Input Logic Level - Low: 700mV~800mV
Input Logic Level - High: 1.7V~2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 3.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1;3
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.186 g

Overview

The SN74LVC1G11 performs the Boolean function Y = A · B · C or Y = (A(overline) + B(overline) + C(overline))(overline) in positive logic. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

AV Receivers
DLP Front Projection System
Digital Picture Frames
Digital Radio
Digital Still Cameras
Digital Video Cameras (DVC)
Embedded PCs
E-Books
Ethernet Switchs
GPS: Personal Navigation Devices
Handset: Smartphones
High-Speed Data Acquisition and Generation
Mobile Internet Devices
Notebook PC and Netbooks
Network-Attached Storage (NAS)
Power Line Communication Modems
Server PSU
STB, DVR, and Streaming Media
Speakers: USB
Tablets: Enterprise Video Broadcasting and Infrastructure: Scalable Platform and IP-Based Multi-Format Transcoders
Wireless Headsets, Keyboards, and Mice

Key features

Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 1000-V Charged-Device Model (C101)
Available in the NanoFree Package
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Maximum tpd of 4.1 ns at 3.3 V
Low Power Consumption, 10-μA Maximum ICC
±24-mA Output Drive at 3.3 V
Ioff Supports Partial-Power-Down Mode Operation
