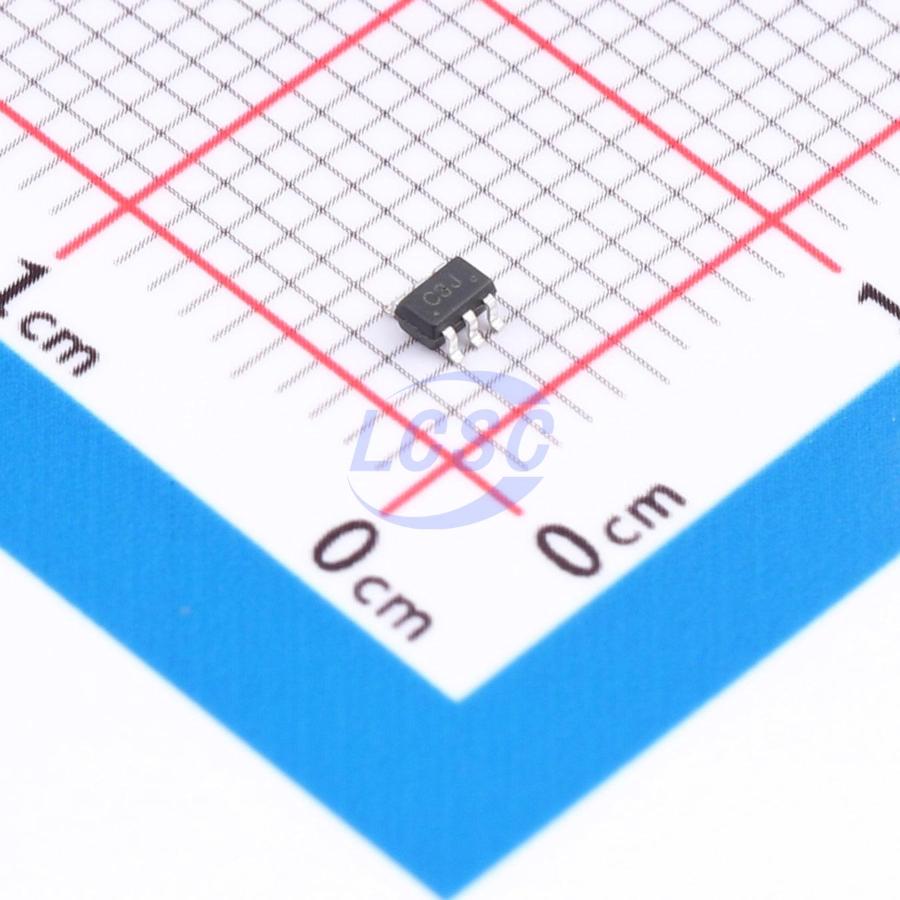

SN74LVC1G11DCKR(AT)
1.65V~5.5V 3.7ns@5V,50pF SC-70-6 Gates and Inverters
SC-70-6RoHSActive
- Manufacturer
- AOTE
- Manufacturer part #
- SN74LVC1G11DCKR(AT)
- Store part #
- C55089947
- Package / case
- SC-70-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C55089947
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.13 | ₹61.30 |
| 100+ | ₹4.83 | ₹483.00 |
| 300+ | ₹4.18 | ₹1,254.00 |
| 3,000+ | ₹3.70 | ₹11,100.00 |
| 6,000+ | ₹3.31 | ₹19,860.00 |
| 9,000+ | ₹3.11 | ₹27,990.00 |
10 × ₹6.13
₹61.30
excl. GST
₹72.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G11DCKR(AT)
₹61.30 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 3;1
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 3.7ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| AiP74LVC1G11GC363.TR#C52120896Wuxi I-core Elec · SOT-363 | Wuxi I-core Elec | SOT-363 | 2,040 | ₹12.49 · 2,040 in stock | View | |
 | SN74LVC1G11IDCKRQ1#C2863973TI · SC-70-6 | TI | SC-70-6 | 205 | ₹37.11 · 205 in stock | View |
 | U74LVC1G11G-AL6-R#C43739056UTC · SOT-363 | UTC | SOT-363 | 455 | ₹11.67 · 455 in stock | View |
 | RS1G11XC6#C20611885RUNIC · SC-70-6 | RUNIC | SC-70-6 | 305 | ₹15.81 · 305 in stock | View |
 | 74LVC1G11GW-Q100H#C548242Nexperia · TSSOP-6 | Nexperia | TSSOP-6 | 1,725 | ₹18.15 · 1,725 in stock | View |
