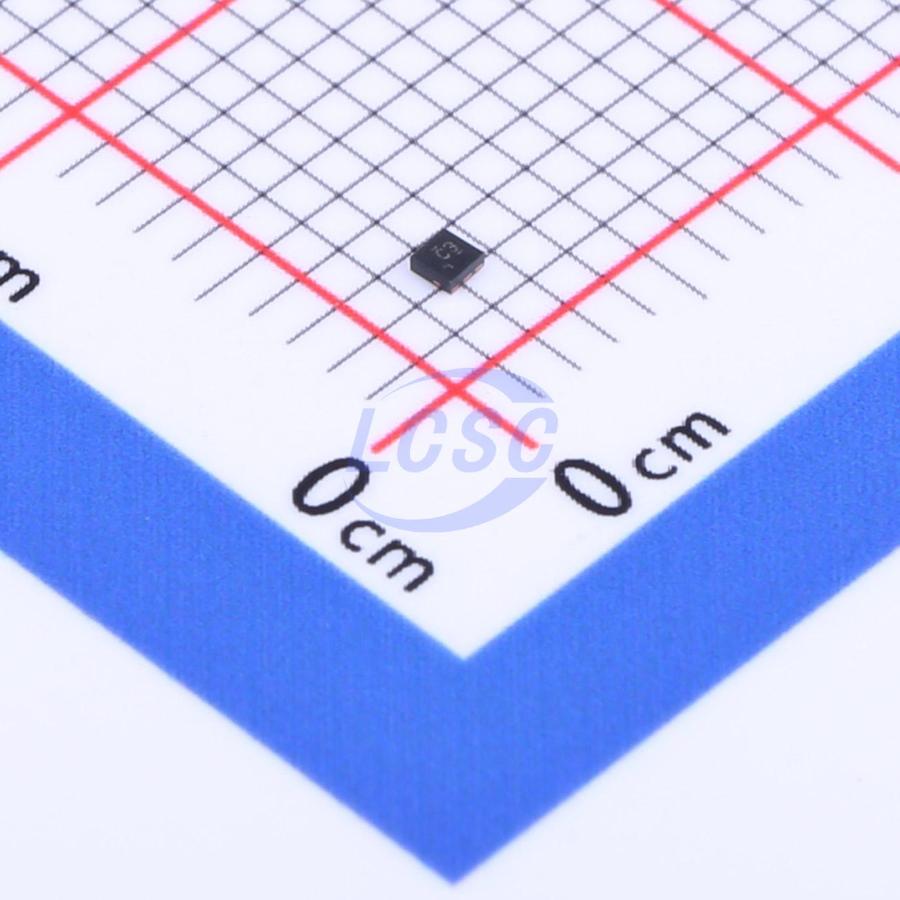

SN74LVC1G11DSFR

AND Gate IC 1 Channel USON-6(1x1.5)

USON-6(1x1.5)ROHS3 CompliantActive

Single 3-Input Positive-AND Gate

Manufacturer: TI
Manufacturer part #: SN74LVC1G11DSFR
Store part #: C2682084
Package / case: USON-6(1x1.5)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,981 in stock

#C2682084

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
1+	₹47.59	₹47.59
10+	₹37.39	₹373.90
30+	₹32.39	₹971.70
100+	₹28.03	₹2,803.00
500+	₹26.74	₹13,370.00
1,000+	₹26.08	₹26,080.00

Quantity (min 1)

1 × ₹47.59

₹47.59

excl. GST

₹56.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

SN74LVC1G11DSFR

₹47.59 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Propagation Delay: 3.5ns@5V,50pF
Features: Local shutdown mode;Overvoltage-tolerant input
Input Logic Level - Low: 700mV~800mV
Input Logic Level - High: 1.7V~2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1;3
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.001 g

Overview

SN74LVC1G11 implements the Boolean function Y = A • B • C or Y = ¬(¬A + ¬B + C) in positive logic. NanoFree package technology represents a major breakthrough in IC packaging concepts, using the silicon die itself as the package. This device is designed for partial power-down applications using Ioff. The Ioff circuit disables the output to prevent reverse current flow from damaging the device when power is removed.

Applications

AV Receivers
DLP Front Projection System
Digital Picture Frames
Digital Radio
Digital Still Cameras
Digital Video Cameras (DVC)
Embedded PCs
E-Books
Ethernet Switchs
GPS: Personal Navigation Devices
Handset: Smartphones
High-Speed Data Acquisition and Generation
Mobile Internet Devices
Notebook PC and Netbooks
Network-Attached Storage (NAS)
Power Line Communication Modems
Server PSU
STB, DVR, and Streaming Media
Speakers: USB
Tablets: Enterprise Video Broadcasting and Infrastructure: Scalable Platform and IP-Based Multi-Format Transcoders
Wireless Headsets, Keyboards, and Mice

Key features

Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 1000-V Charged-Device Model (C101)
Available in the NanoFree Package
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Maximum propagation delay (tpd) of 4.1 ns at 3.3 V
Low Power Consumption, 10-μA Maximum ICC
±24-mA Output Drive at 3.3 V
|off Supports Partial-Power-Down Mode Operation

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	SN74LVC1G11DRYR#C2872421TI · SON-6(1x1.5)	TI	SON-6(1x1.5)	50	₹56.60 · 50 in stock	View
	74LVC1G11GM,132#C548237Nexperia · XSON-6(1x1.5)	Nexperia	XSON-6(1x1.5)	On request	₹10.80 · 0 in stock	View
