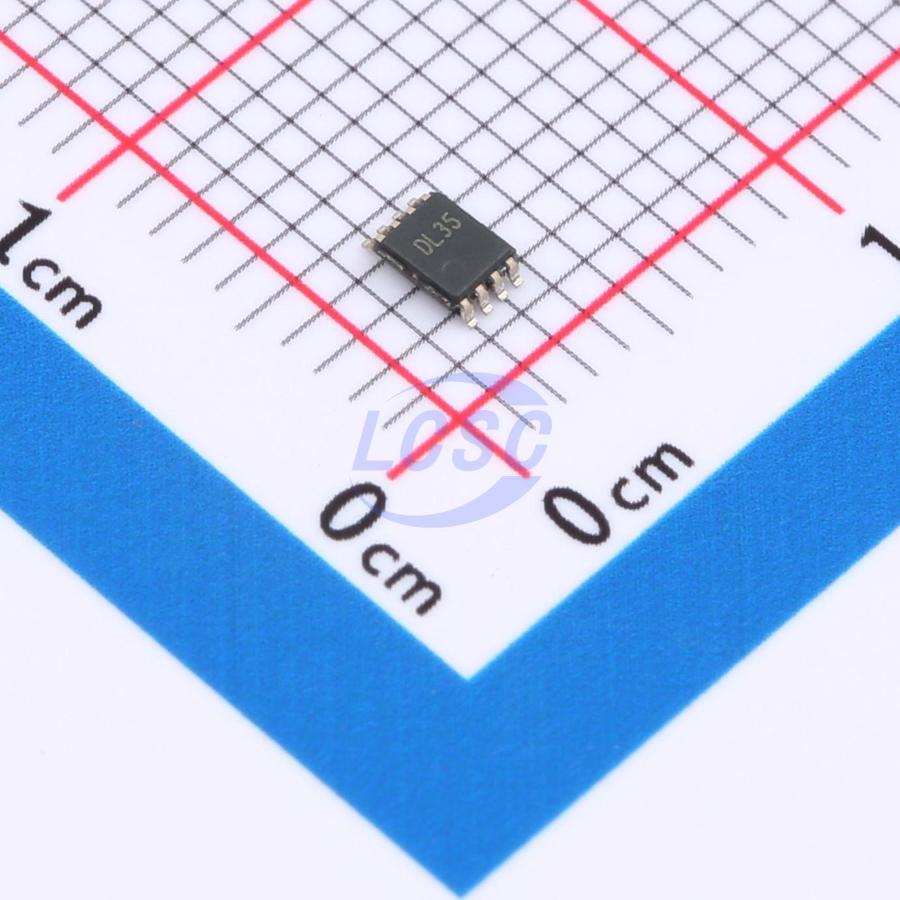

SN74LVC1G123DCU(LX)
Schmitt trigger VSSOP-8 Multivibrators
SN74LVC1G123 (LX) Single Re-triggerable Monostable Multivibrator with Schmitt-Trigger Inputs
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LVC1G123DCU(LX)
- Store part #
- C26159250
- Package / case
- VSSOP-8
- Category
- Multivibrators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,445 in stock
#C26159250
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.89 | ₹184.45 |
| 50+ | ₹29.24 | ₹1,462.00 |
| 150+ | ₹25.96 | ₹3,894.00 |
| 500+ | ₹21.87 | ₹10,935.00 |
| 3,000+ | ₹19.90 | ₹59,700.00 |
| 6,000+ | ₹18.80 | ₹1,12,800.00 |
5 × ₹36.89
₹184.45
excl. GST
₹217.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G123DCU(LX)
₹184.45 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Type
- Monostable
- Number Of Channels
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The SN74LVC1G123 is a single retriggerable monostable multivibrator with Schmitt-trigger inputs. The output pulse width is controlled by three methods: - Base pulse width is set by selecting external resistor (REXT) and capacitor (CEXT). - Once triggered, the output pulse width can be extended by retriggering on the falling edge of (A) or the rising edge of (B). By repeating this process, the output pulse period (Q = HIGH) can be made to meet the desired requirements as closely as possible. - A rising edge on CLR can also trigger the circuit.
Key features
- Supply voltage range: 1.65V ~ 5.5V
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Retriggerable for extra-long pulses up to 100% duty cycle
- IO pins in high-impedance state when VCC = 0V
- Reset function
- Schmitt-trigger inputs on all inputs
- Inputs compatible with 5.5V signals
- Power-on reset function
- Rated temperature range: -40°C ~ +125°C
- Package: TSSOP8/VSSOP8/XSON8
