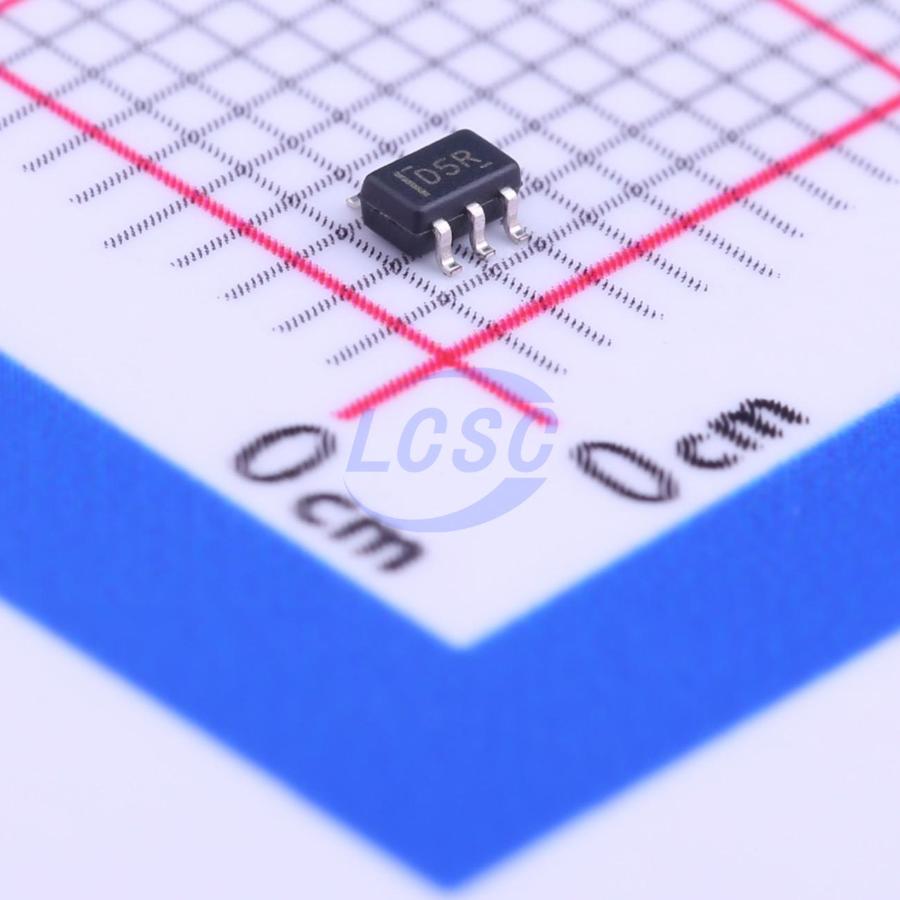

SN74LVC1G132DCKR

Schmitt trigger 1.65V~5.5V 5ns@5V,50pF 10uA SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS3 CompliantActive

Single 2-Input NAND Gate With Schmitt-Trigger Inputs

Manufacturer: TI
Manufacturer part #: SN74LVC1G132DCKR
Store part #: C205992
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20,715 in stock

#C205992

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹16.14	₹80.70
50+	₹12.85	₹642.50
150+	₹11.21	₹1,681.50
500+	₹9.98	₹4,990.00
3,000+	₹8.98	₹26,940.00
6,000+	₹8.49	₹50,940.00

Quantity (min 5, multiples of 5)

5 × ₹16.14

₹80.70

excl. GST

₹95.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G132DCKR

₹80.70 for 5 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 450mV;300mV;550mV
Propagation Delay: 5ns@5V,50pF
Features: Local shutdown mode
Input Logic Level - High: 1.16V~3.33V
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 390mV~1.87V
Output Logic Level - High: 1.2V;1.9V;2.4V;3.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

The SN74LVC1G132 device contains one 2-input NAND gate with Schmitt-trigger inputs designed for 1.65-V to 5.5-V VCC operation and performs the Boolean function Y = AxB(overline) or Y = A(overline) + B(overline) in positive logic. Because of Schmitt action, this device has different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. This device can be triggered from the slowest of input ramps and still give clean jitter-free output signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Applications

AV Receiver
Audio Dock: Portable
Blu-Ray Player and Home Theater
Embedded PC
MP3 Player/Recorder (Portable Audio)
Personal Digital Assistant (PDA)
Power: Telecom/Server AC/DC Supply: Single
Controller: Analog and Digital
Solid State Drive (SSD): Client and Enterprise
TV: LCD/Digital and High-Definition (HDTV)
Tablet: Enterprise
Video Analytics: Server
Wireless Headset, Keyboard, and Mouse

Key features

Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
Available in Texas Instruments NanoStar and NanoFree Packages
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Max tpd of 5.3 ns at 3.3 V
Low Power Consumption, 10-μA Maximum ICC
Ioff Supports Partial-Power-Down Mode Operation
