lingxingicDatasheet (PDF)

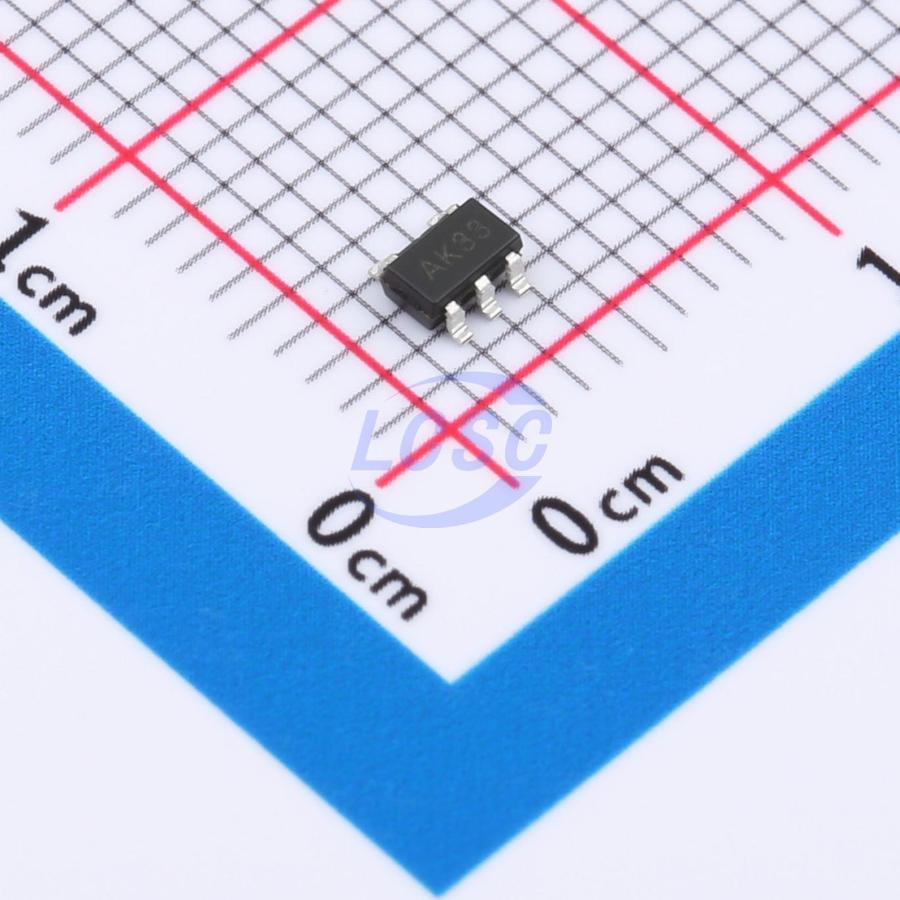

SN74LVC1G14DB(LX)
Schmitt trigger 1.65V~5.5V 10.5ns@5.5V,50pF 4uA 1 SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
Single Schmitt Inverter
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LVC1G14DB(LX)
- Store part #
- C22469925
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,070 in stock
#C22469925
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.03 | ₹50.30 |
| 100+ | ₹3.97 | ₹397.00 |
| 300+ | ₹3.45 | ₹1,035.00 |
| 3,000+ | ₹3.06 | ₹9,180.00 |
| 6,000+ | ₹2.74 | ₹16,440.00 |
| 9,000+ | ₹2.58 | ₹23,220.00 |
10 × ₹5.03
₹50.30
excl. GST
₹59.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G14DB(LX)
₹50.30 for 10 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74LVC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 10.5ns@5.5V,50pF
- Output Logic Level - Low
- 100mV~550mV
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.8V~4.11V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.054 g
