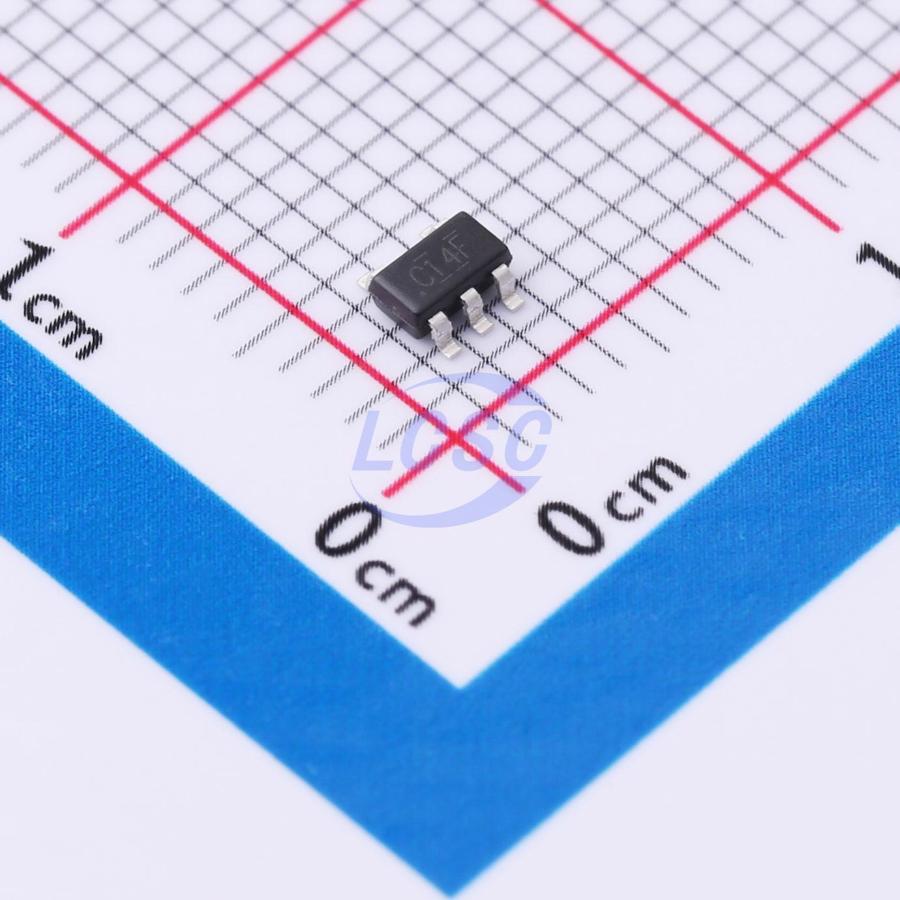

SN74LVC1G14DBVR
Schmitt trigger 1.65V~5.5V 5ns@5V,50pF 100nA 1 SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
NOT gate integrated circuits with Schmitt trigger function
- Manufacturer
- TWGMC
- Manufacturer part #
- SN74LVC1G14DBVR
- Store part #
- C5250998
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,580 in stock
#C5250998
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.52 | ₹65.20 |
| 100+ | ₹5.19 | ₹519.00 |
| 300+ | ₹4.52 | ₹1,356.00 |
| 3,000+ | ₹3.85 | ₹11,550.00 |
| 6,000+ | ₹3.45 | ₹20,700.00 |
| 9,000+ | ₹3.25 | ₹29,250.00 |
10 × ₹6.52
₹65.20
excl. GST
₹76.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G14DBVR
₹65.20 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 5ns@5V,50pF
- Output Logic Level - Low
- 350mV
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 4V
- Quiescent Current(Iq)
- 100nA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
SN74LVC1G14 is A non-gate integrated circuit with Schmitt-triggered function, which can achieve Y = A(overline) mathematical mathematical logic operation. Advanced CMOS process design, with low power consumption and high output driving capability, the power supply voltage VCC between 1.65V and 5.5V chip can work normally. 74LVC1G14 has a variety of small encapsulation shapes, which can be widely used in high-end precision instruments , miniaturized and lowpower handheld devices, as well as artificial intelligence and other fields.
Applications
- Portable audio interface
- Digital TV
- Blu-ray players and home theaters
- Wireless headphones, smart watches, etc
- Solid state drives
- Smart wearable Devices
Key features
- Low input current.
- Wide operating voltage range: 1.65V - 5.5V
- Low static power consumption: Icc = 0.1uA
- Packaging form: DBV/DRL/YZP/DCK DRP/DSF/DPW
- High output drive: VCC = 4.5V
