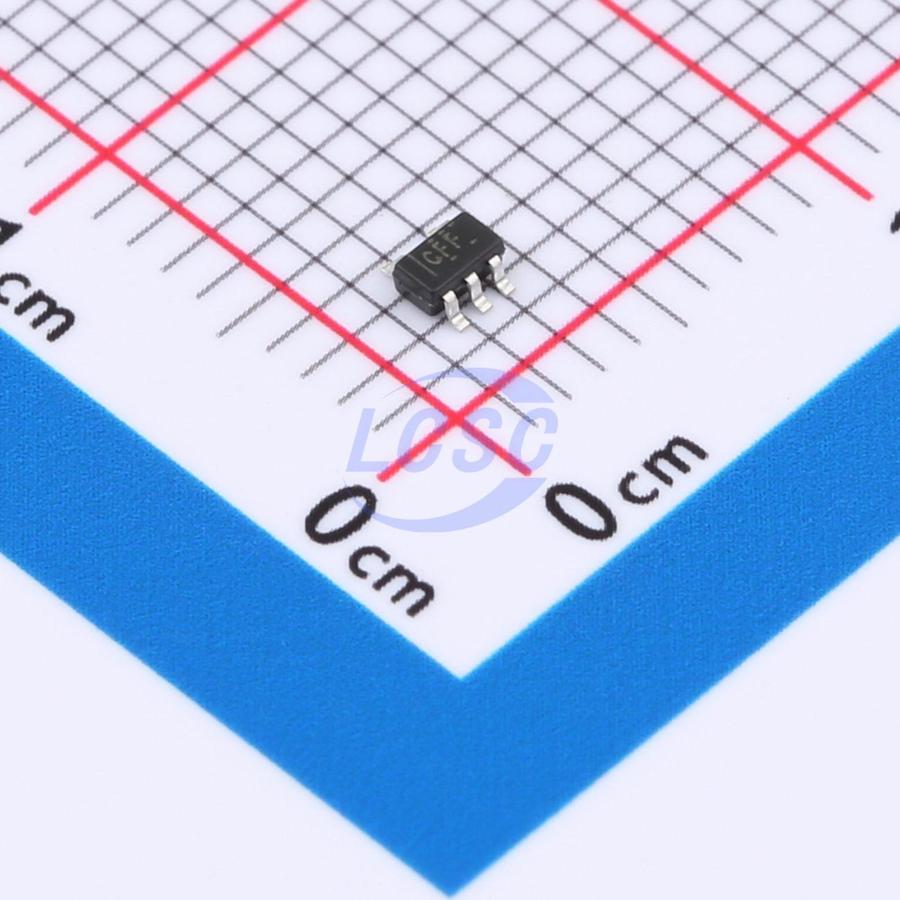

SN74LVC1G14DCKR
SOT-353 Gates and Inverters
SOT-353RoHSActive
Single Schmitt-Trigger Inverter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G14DCKR
- Store part #
- C19829630
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,740 in stock
#C19829630
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.92 | ₹98.40 |
| 200+ | ₹3.88 | ₹776.00 |
| 600+ | ₹3.36 | ₹2,016.00 |
| 3,000+ | ₹2.98 | ₹8,940.00 |
| 9,000+ | ₹2.66 | ₹23,940.00 |
| 21,000+ | ₹2.50 | ₹52,500.00 |
20 × ₹4.92
₹98.40
excl. GST
₹116.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G14DCKR
₹98.40 for 20 + GST
Specifications
- Features
- Power shutdown protection;Noise suppression function;Power-off protection function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.029 g
Overview
The SN74LVC1G14 is a single Schmitt-trigger inverter, it provides the function Y = A. The device have different input threshold levels for positivegoing (VT+) and negative-going (VT-) signals because of the Schmitt-trigger action in the input. This device has power-down protective circuit, preventing device destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box Cell Phones, Personal Navigation / GPS MP3 Players, Cameras, Video Recorders
Key features
- Operation Voltage Range: 1.65V ~ 5.5V
- Low power current: ICC = 10μA (Max)
- ±24mA output drive (VCC = 3.0V)
- Power down protection
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
- SOT553 Package Available
