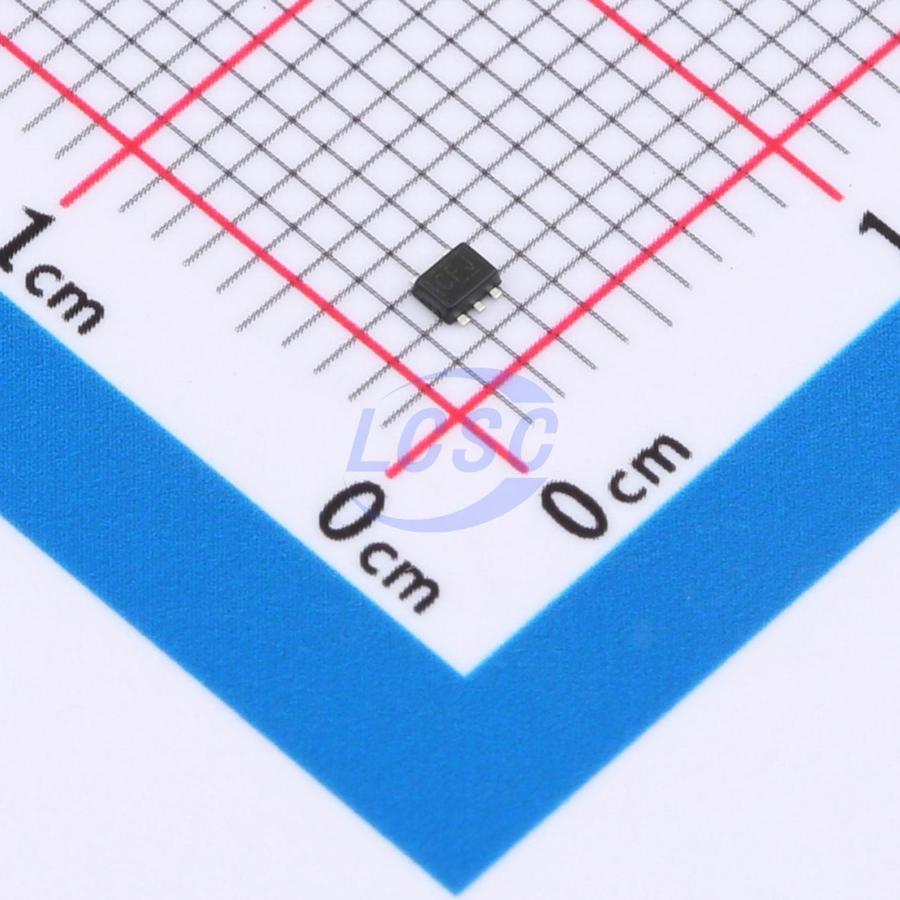

SN74LVC1G14DRLR
SOT-553 Gates and Inverters
SOT-553RoHSActive
Single Schmitt-trigger Inverter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G14DRLR
- Store part #
- C19829622
- Package / case
- SOT-553
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,620 in stock
#C19829622
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.38 | ₹73.80 |
| 100+ | ₹6.51 | ₹651.00 |
| 300+ | ₹6.07 | ₹1,821.00 |
| 1,000+ | ₹5.74 | ₹5,740.00 |
| 4,000+ | ₹5.49 | ₹21,960.00 |
| 8,000+ | ₹5.36 | ₹42,880.00 |
10 × ₹7.38
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74LVC1G14DRLR
₹73.80 for 10 + GST
Specifications
- Features
- Power shutdown protection;Noise suppression function;Power-off protection function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
The SN74LVC1G14 is a single Schmitt-trigger inverter, it provides the function Y = A The device have different input threshold levels for positivegoing (VT+) and negative-going (VT) signals because of the Schmitt-trigger action in the input. This device has power-down protective circuit, preventing device destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation Voltage Range: 1.65V ~ 5.5V
- Low power current: lCC = 10μA (Max)
- ±24mA output drive (VCC = 3.0V)
- Power down protection
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
- SOT553 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G14X5#C48543230TECH PUBLIC · SOT-553 | TECH PUBLIC | SOT-553 | 3,345 | ₹11.05 · 3,345 in stock | View |
