XBLW

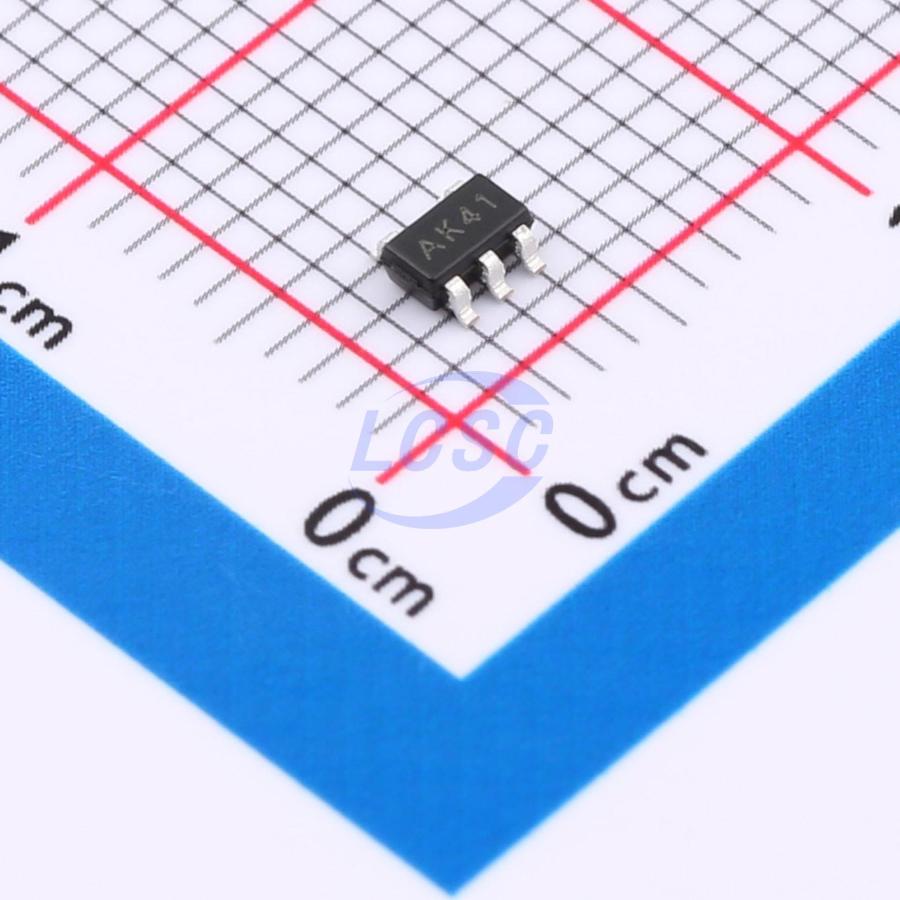

SN74LVC1G14T235(XBLW)

Schmitt trigger 1uA 1.65V~5.5V 1 7ns@5.5V,50pF SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS CompliantActive

Single Schmitt-Trigger Inverter

Manufacturer: XBLW
Manufacturer part #: SN74LVC1G14T235(XBLW)
Store part #: C41408449
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,880 in stock

#C41408449

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.11	₹51.10
100+	₹4.04	₹404.00
300+	₹3.51	₹1,053.00
3,000+	₹3.11	₹9,330.00
6,000+	₹2.78	₹16,680.00
9,000+	₹2.62	₹23,580.00

Quantity (min 10, multiples of 10)

10 × ₹5.11

₹51.10

excl. GST

₹60.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G14T235(XBLW)

₹51.10 for 10 + GST

Specifications

Operating Temperature: -40℃~+105℃
Logic Family: 74LVC
Input Type: Schmitt trigger
Quiescent Current(Iq): 1uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1
Propagation Delay: 7ns@5.5V,50pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.055 g

Overview

The SN74LVC1G14 provides the inverting buffer function with Schmitt-trigger input. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. The input can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment. Schmitt-trigger action at the input makes the circuit tolerant for slower input rise and fall time. This device is fully specified for partial power-down applications using Iorr. The Iorr circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
