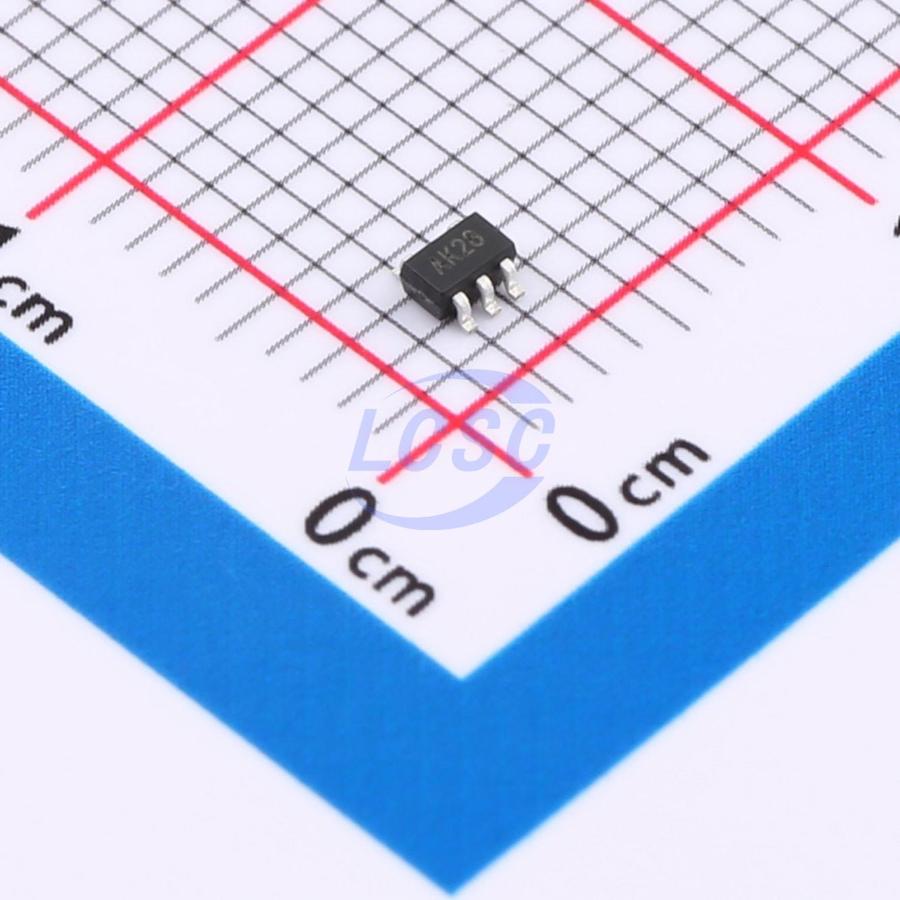

SN74LVC1G14T353(XBLW)
Schmitt trigger 1.65V~5.5V 7ns@5.5V,50pF 1uA 1 SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
Single Schmitt-Trigger Inverter
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LVC1G14T353(XBLW)
- Store part #
- C41408450
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,190 in stock
#C41408450
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.04 | ₹50.40 |
| 100+ | ₹3.98 | ₹398.00 |
| 300+ | ₹3.45 | ₹1,035.00 |
| 3,000+ | ₹3.06 | ₹9,180.00 |
| 6,000+ | ₹2.74 | ₹16,440.00 |
| 9,000+ | ₹2.59 | ₹23,310.00 |
10 × ₹5.04
₹50.40
excl. GST
₹59.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G14T353(XBLW)
₹50.40 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 7ns@5.5V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+105℃
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 24mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The SN74LVC1G14 provides the inverting buffer function with Schmitt-trigger input. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. The input can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment. Schmitt-trigger action at the input makes the circuit tolerant for slower input rise and fall time. This device is fully specified for partial power-down applications using Iorr. The Iorr circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Applications
- Audio Dock: Portable
- AV Receiver
- Blu-ray Player and Home Theater
- Embedded PC
- MP3 Player/Recorder (Portable Audio)
- Personal Digital Assistant (PDA)
- Solid State Drive (SSD): Client and Enterprise
- Tablet: Enterprise
- TV: LCD/Digital and High-Definition (HDTV)
- Video Analytics: Server
- Wireless Headset, Keyboard, and Mouse
- Power: Telecom/Server
- AC/DC Supply: Single
- Controller: Analog and Digital
Key features
- Wide supply voltage range from 1.65V to 5.5V
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Direct interface with TTL levels
- Unlimited rise and fall times
- Input accepts voltages up to 5V
- Specified from -40℃ to +105℃
- Packaging information: SOT-23-5/SOT-353
