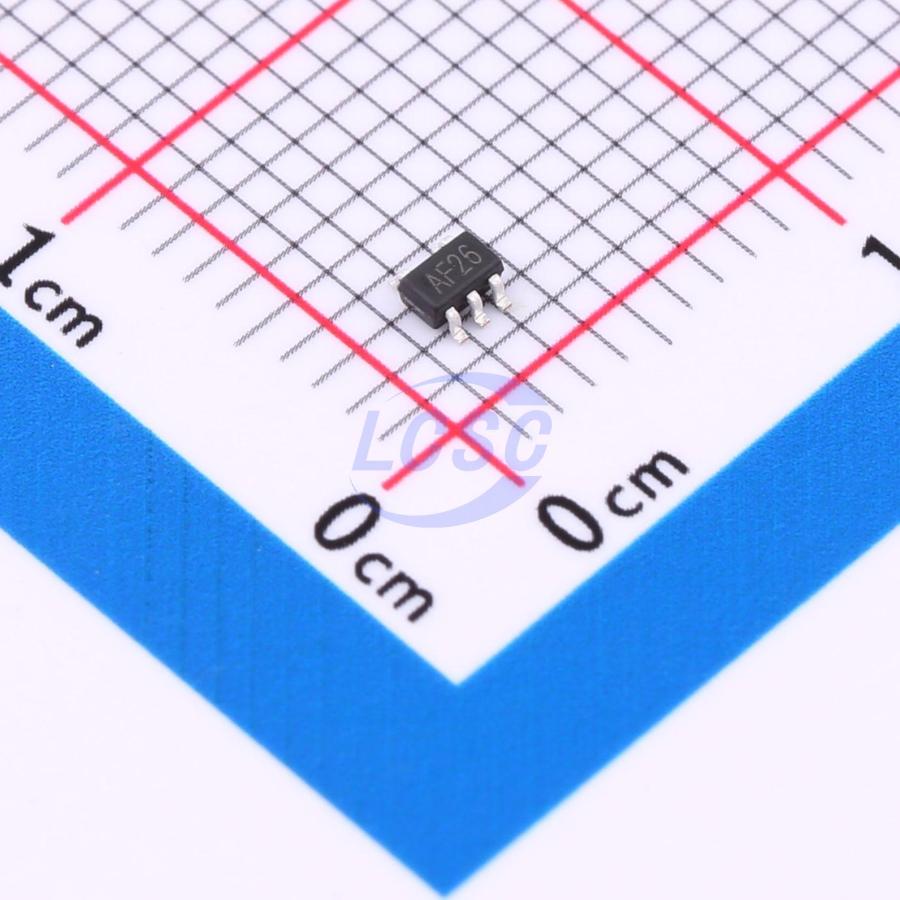

SN74LVC1G17DC(LX)
Schmitt trigger 1.65V~5.5V 1 1 SOT-353 Flip Flops
SOT-353RoHSActive
Single Buffer Schmitt Trigger
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LVC1G17DC(LX)
- Store part #
- C22469944
- Package / case
- SOT-353
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,120 in stock
#C22469944
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.40 | ₹64.00 |
| 100+ | ₹5.07 | ₹507.00 |
| 300+ | ₹4.39 | ₹1,317.00 |
| 3,000+ | ₹3.89 | ₹11,670.00 |
| 6,000+ | ₹3.48 | ₹20,880.00 |
| 9,000+ | ₹3.28 | ₹29,520.00 |
10 × ₹6.40
₹64.00
excl. GST
₹75.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G17DC(LX)
₹64.00 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Number of Bits per Element
- 1
- Series
- 74LVC
- Current - Output High(IOH)
- 50mA
- Number of Elements
- 1
- Current - Output Low(IOL)
- 50mA
- Features
- Level shifting
- Quiescent Current
- 4uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
The SN74LVC1G17 provides a buffer function with Schmitt trigger input. It is capable of transforming slowly changing input signals into sharply defined outputs. The input can be driven from either 3.3 V or 5V devices. This feature allows the use of this device in a mixed 3.3 V and 5V environment.
Key features
- Wide supply voltage range from 1.65V to 5.5V
- ±24 mA output drive (VCC = 3.0 V)
- CMOS low power consumption
- Direct interface with TTL levels
- Unlimited rise and fall times
- Input accepts voltages up to 5V
- Specified from -40 °C to +125 °C
- Packaging information: SOT-23-5/SOT-353/XSON6
